ONErack 6RU Basic Kit

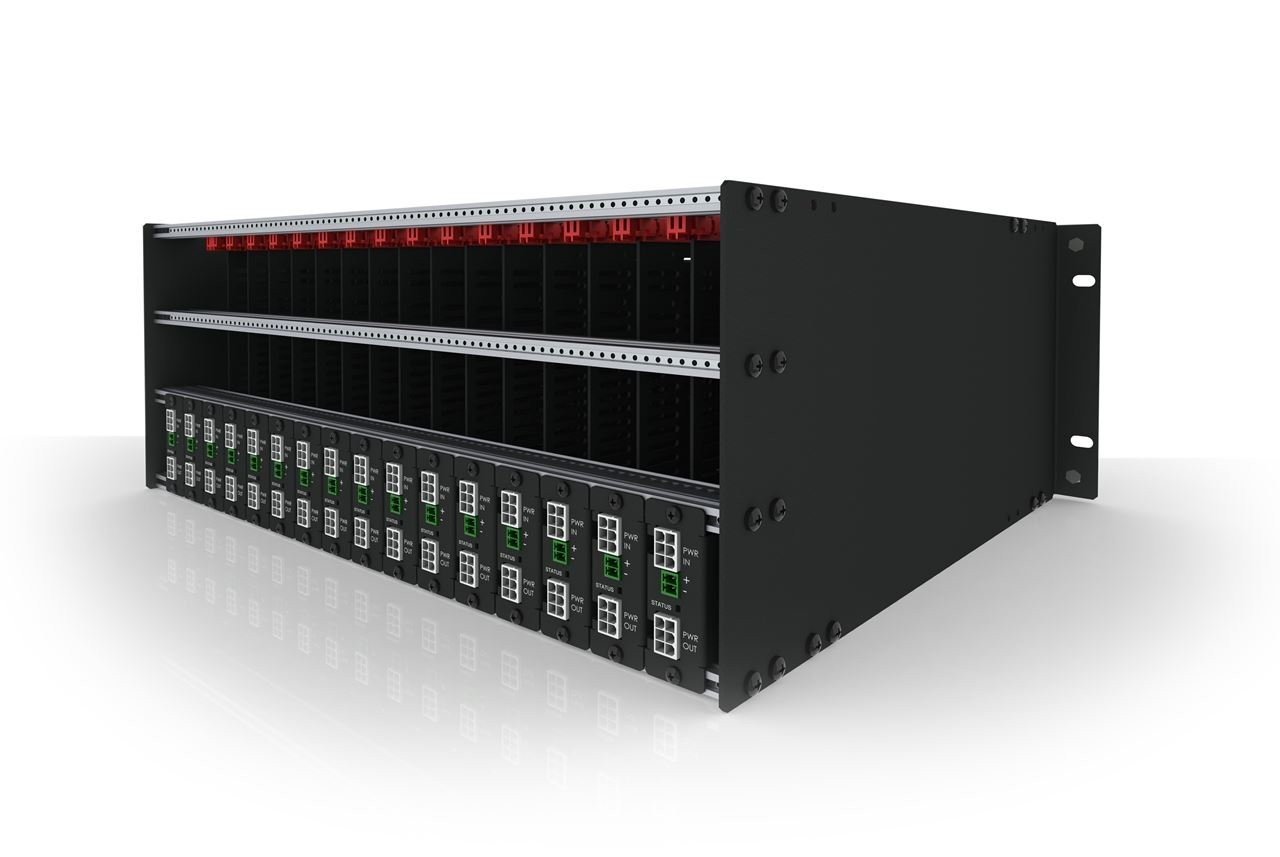

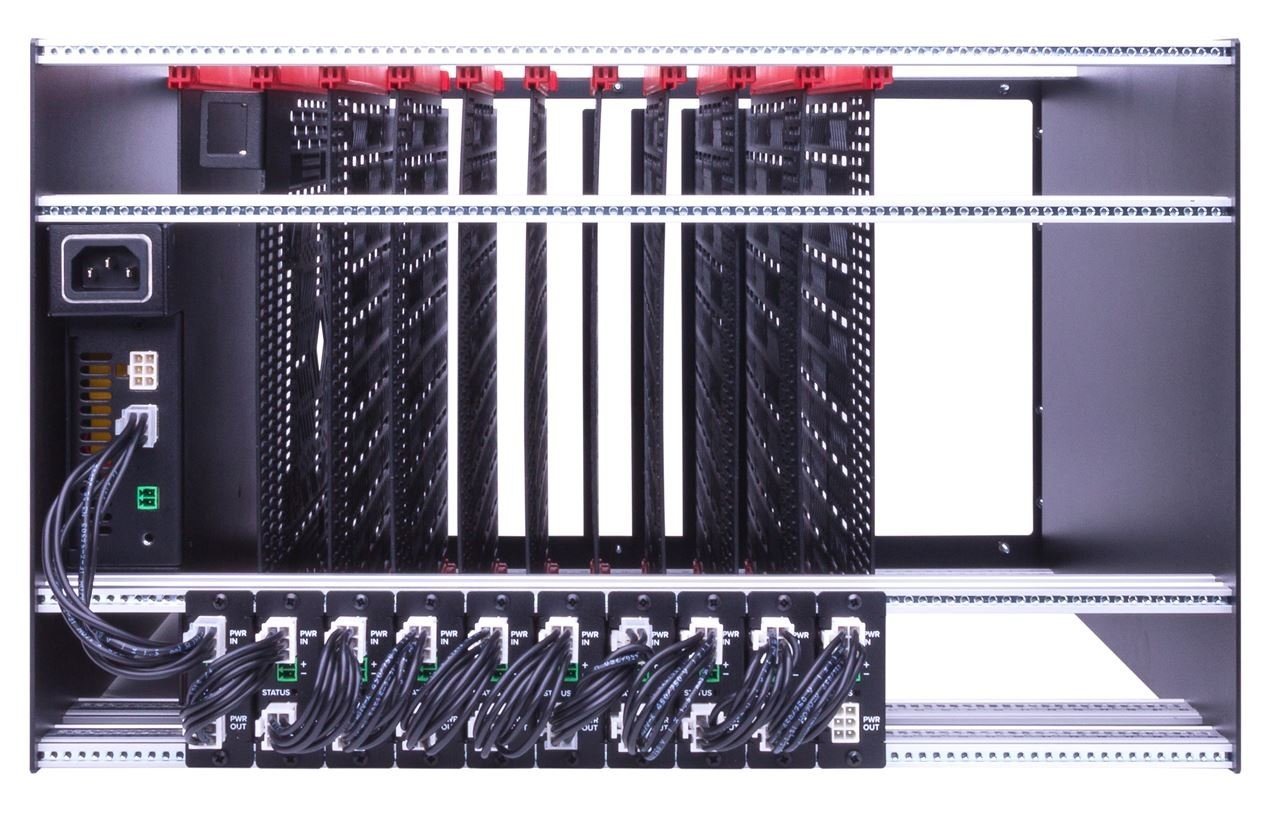

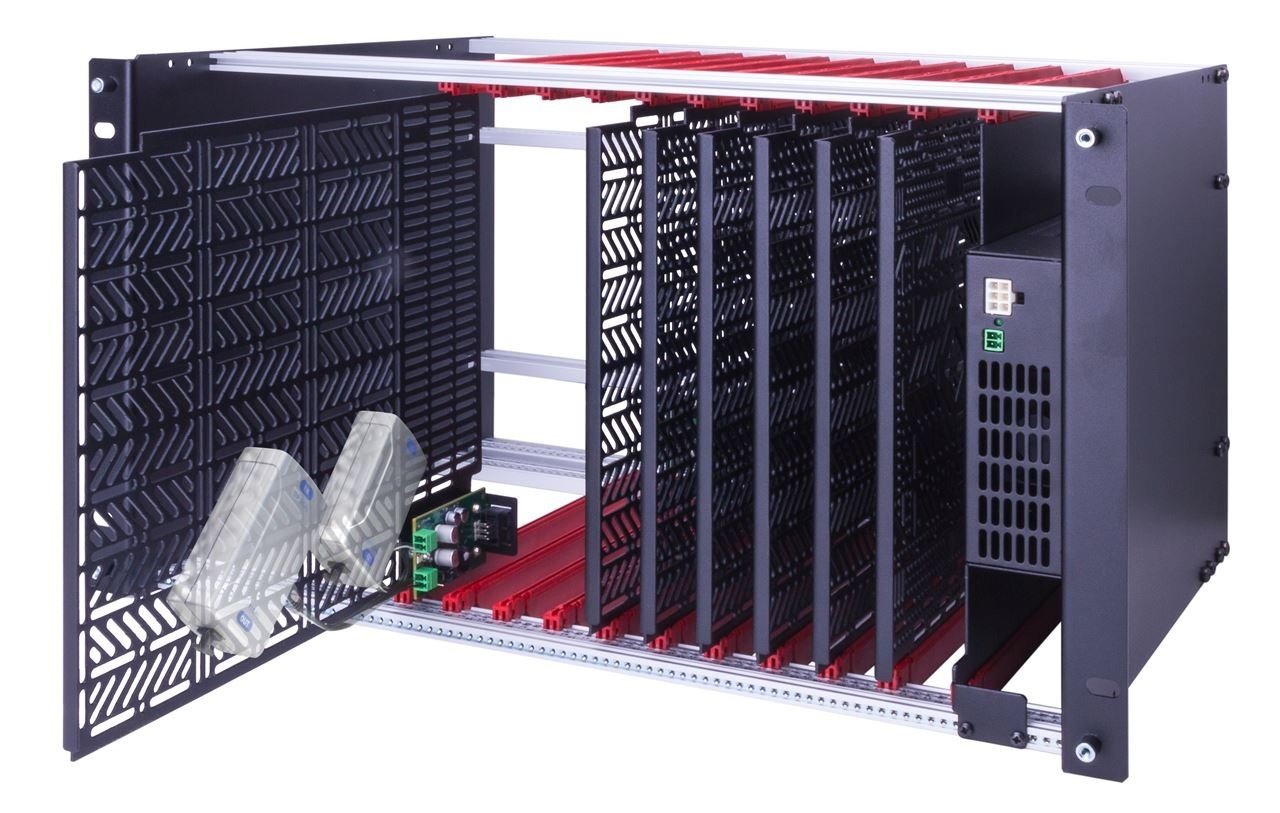

6RU Universal, powered mounting system that vastly improves rack installation of small devices. Basic kit Includes chassis, with 6 modules.

Category: Racking & Power
Manufacturer: tvONE
SKU: 1RK-6RU-Basic-Kit
Print
Racks full of endless wall warts?
Eliminate your DC power supplies with the ONErack universal mounting system.

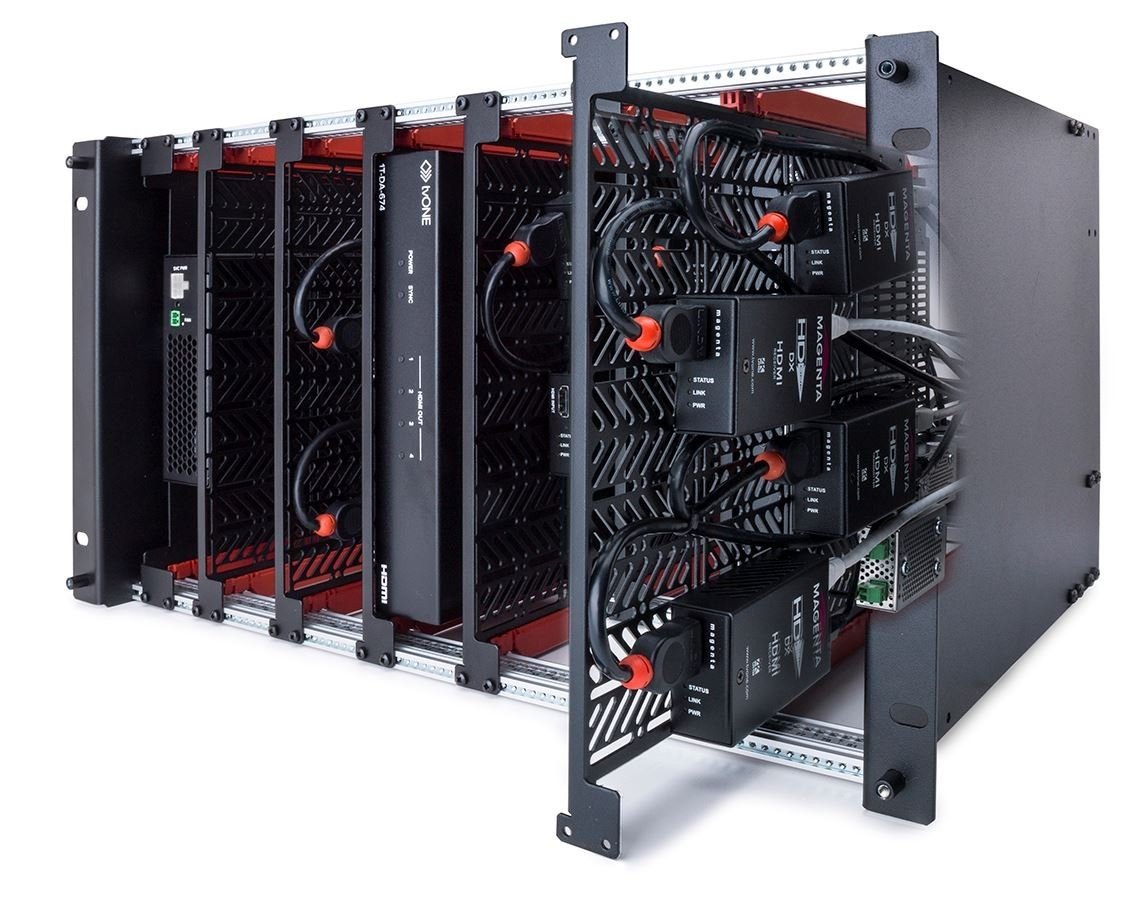

ONErack is a universal, powered mounting system that

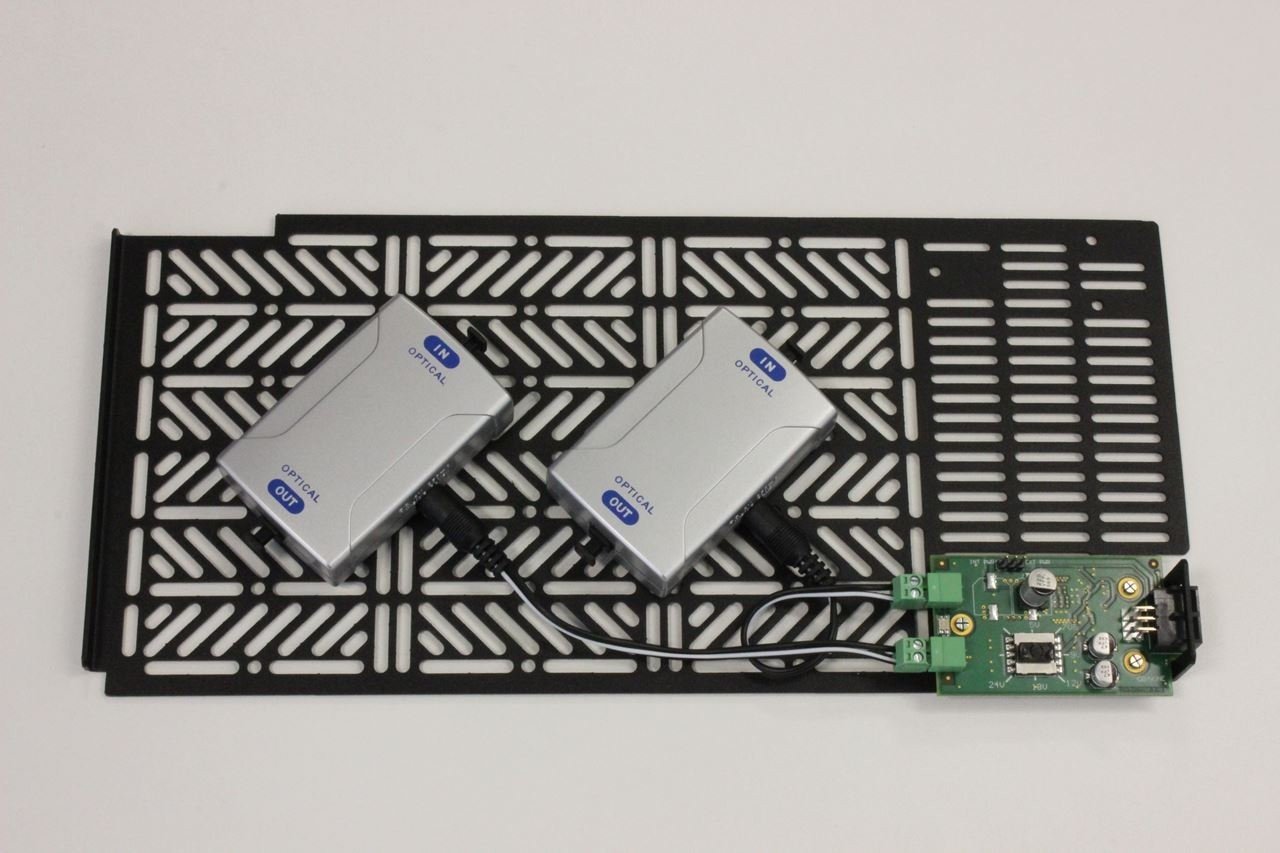

vastly improves rack installation of small devices. Convert randomly sized, externally-powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. The 6RU chassis comes complete with 6 modules (can hold up to 16 modules) with up to 2 voltage selectors each module. Each voltage selector, can provide power @ 5v, 7.5v, 9v, 12v, 13.5v, 18v, & 24v up to 35 watts.

Optional accessories include: standard (250w) or dual-redundant (450w) PSU's, additional mounting modules (requires additional rails), covers (fan, metal, plexi), and a cable management system.

ONErackAlliance Alpha 01

A growing list of manufacturers have joined the ONErack Alliance, formally approving ONErack and ONErack Spider as an accepted alternative to supplied power adapters. All ONErack Alliance members have one thing in common – they stand by their product warranties even after you cut the cord and leave your wall-wart power supply behind. See the ONErack Alliance members here.
Interested in joining the ONErack Alliance? Click here.

Rack it. Power it. Cool it. Do it with ONErack



 Key Features
♦ Universal mounting for any brand
♦ Fast easy installation of small devices
♦ Simple, time saving serviceability
♦ Variable DC voltages from single power supply

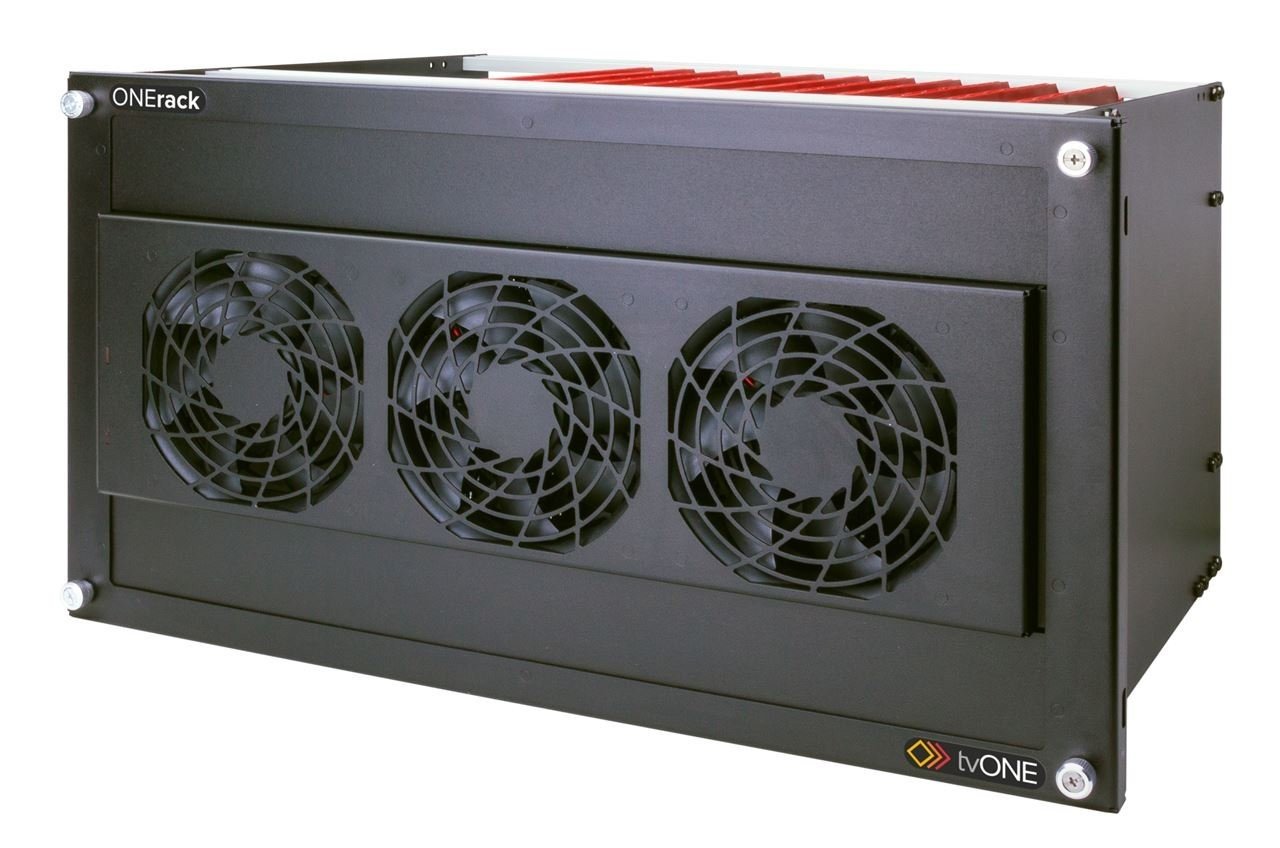

♦ Active fan cooling system for high density applications
♦ Each slot can provide 2 different voltages at the same time
♦ Each slot has 7 different voltage settings

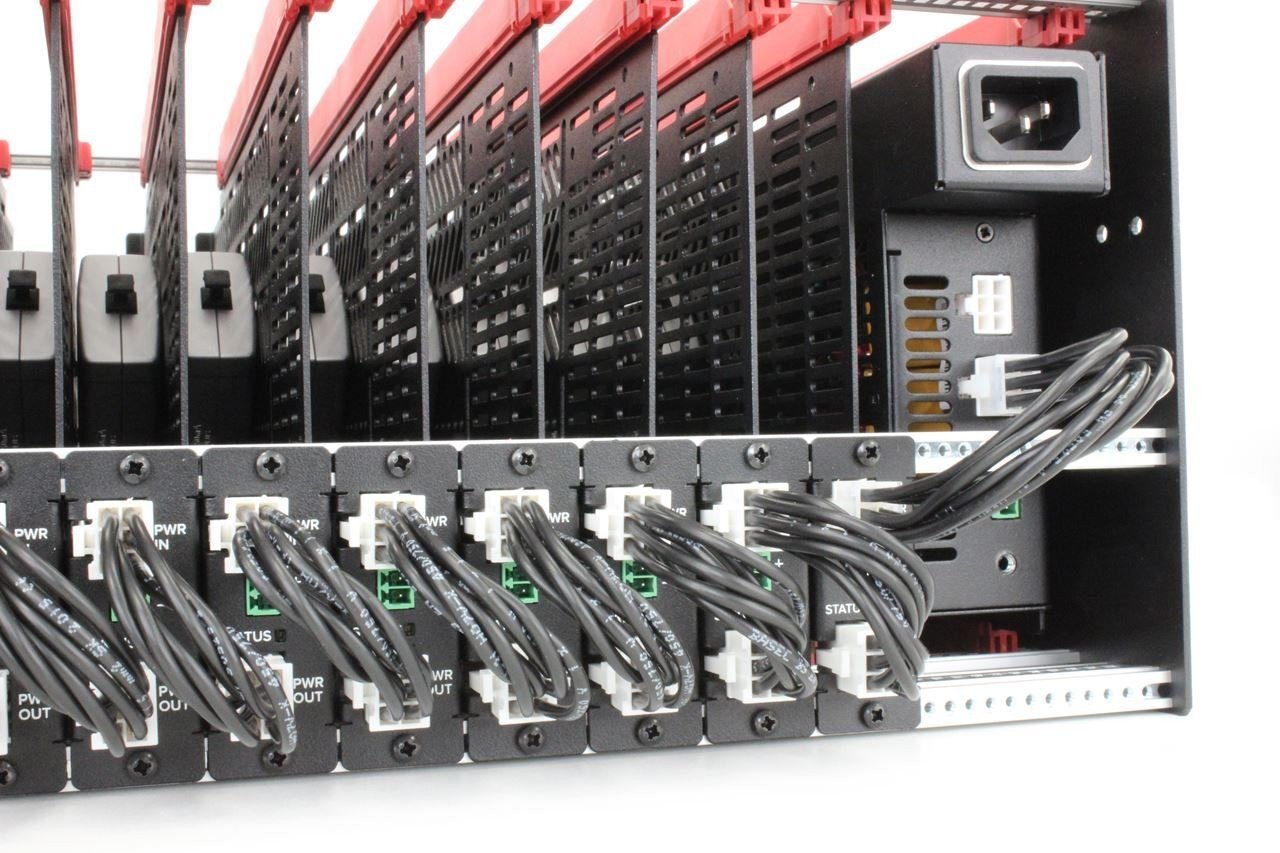

♦ Pass thru allows for custom powering options
♦ Available in 3 sizes; 4RU, 5RU, 6RU
♦ Power up to 32 devices in 4RU, 64 devices in 5 or 6RU

 Brochures

ONErack Brochure (US)

ONErack Brochure (EU)



 Manuals

ONErack Chassis US

ONErack Chassis EU

ONErack Fan Assembly US

ONErack Fan Assembly EU

ONErack Power Supply US

ONErack Power Supply EU

ONErack Power Circuit

ONErack Installation Template

ONErack Extra Power US

ONErack Extra Power EU

ONErack Extra Mounting Rails US

ONErack Extra Mounting Rails EU

ONErack Cable Management US

ONErack Cable Management EU

ONErack Dual-Redundant Power Supply US

ONErack Dual-Redundant Power Supply EU

ONErack PSU Installation Guide US

ONErack PSU Installation Guide EU

ONErack Module US

ONErack Module EU



Specifications

ONErack Specifications (English)

ONErack Specifications (Deutsch)



Design Drawings

Module Surface Area (pdf)



CAD Drawings (DXF Format)

4RU PSU System Integrator Drawing (DXF)

4RU Module System Integrator Drawing (DXF)

4RU Fan System Integrator Drawing (DXF)

4RU Clear Plexi System Integrator Drawing (DXF)

4RU Blank System Integrator Drawing (DXF)

4RU Chassis System Integrator Drawing (DXF)

5RU PSU System Integrator Drawing (DXF)

5RU Module System Integrator Drawing (DXF)

5RU Fan System Integrator Drawing (DXF)

5RU Clear Plexi System Integrator Drawing (DXF)

5RU Blank System Integrator Drawing (DXF)

5RU Chassis System Integrator Drawing (DXF)

6RU PSU System Integrator Drawing (DXF)

6RU Module System Integrator Drawing (DXF)

6RU Fan System Integrator Drawing (DXF)

6RU Clear Plexi System Integrator Drawing (DXF)

6RU Blank System Integrator Drawing (DXF)

6RU Chassis System Integrator Drawing (DXF)



Architectural Specifications

ONErack Architectural Specifications (US)

ONErack Architectural Specifications (Deutsch)



ONErack videos

ONErack - Spotlight

ONErack - Introduction

Introduction showing the overview of ONErack

ONErack - Mount it

Mounting gear inside the ONErack

ONErack - Power it

Connecting and setting the voltage for your devices

ONErack - Cool it

Remove heat from your gear using the ONErack

ONErack - Service it

Tech support has never been easier using the ONErack

ONErack - Review

Sound and Communications Magazine

ONErack - Demonstration

InfoComm AVTV product report

ONErack - Fan Cover

Changing fan direction on your fan cover
