ONErack 5RU Basic Kit

ONErack is a universal, powered mounting system that vastly improves rack installation of small devices.

Category: Racking & Power
Manufacturer: tvONE
SKU: 1RK-5RU-Basic-Kit
Racks full of endless wall warts?
Eliminate your DC power supplies with the ONErack universal mounting system.

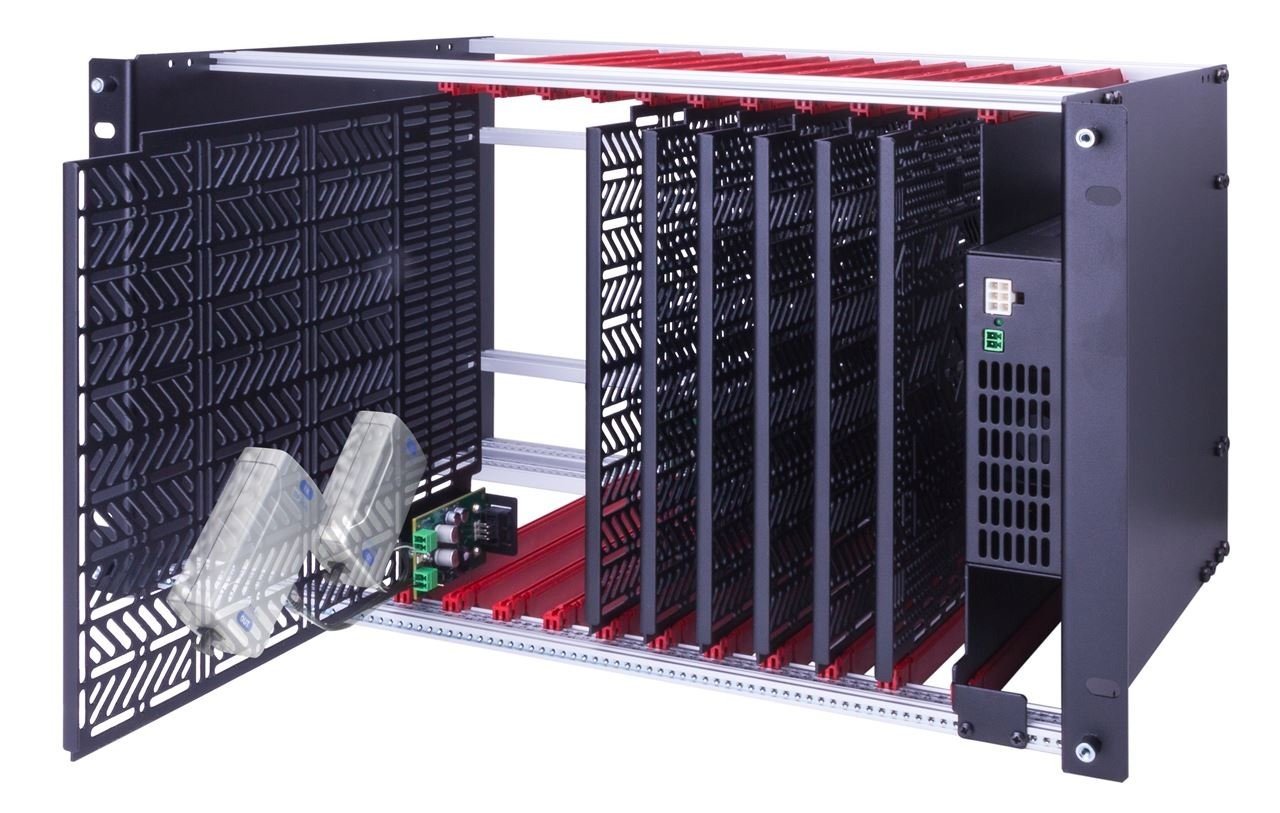

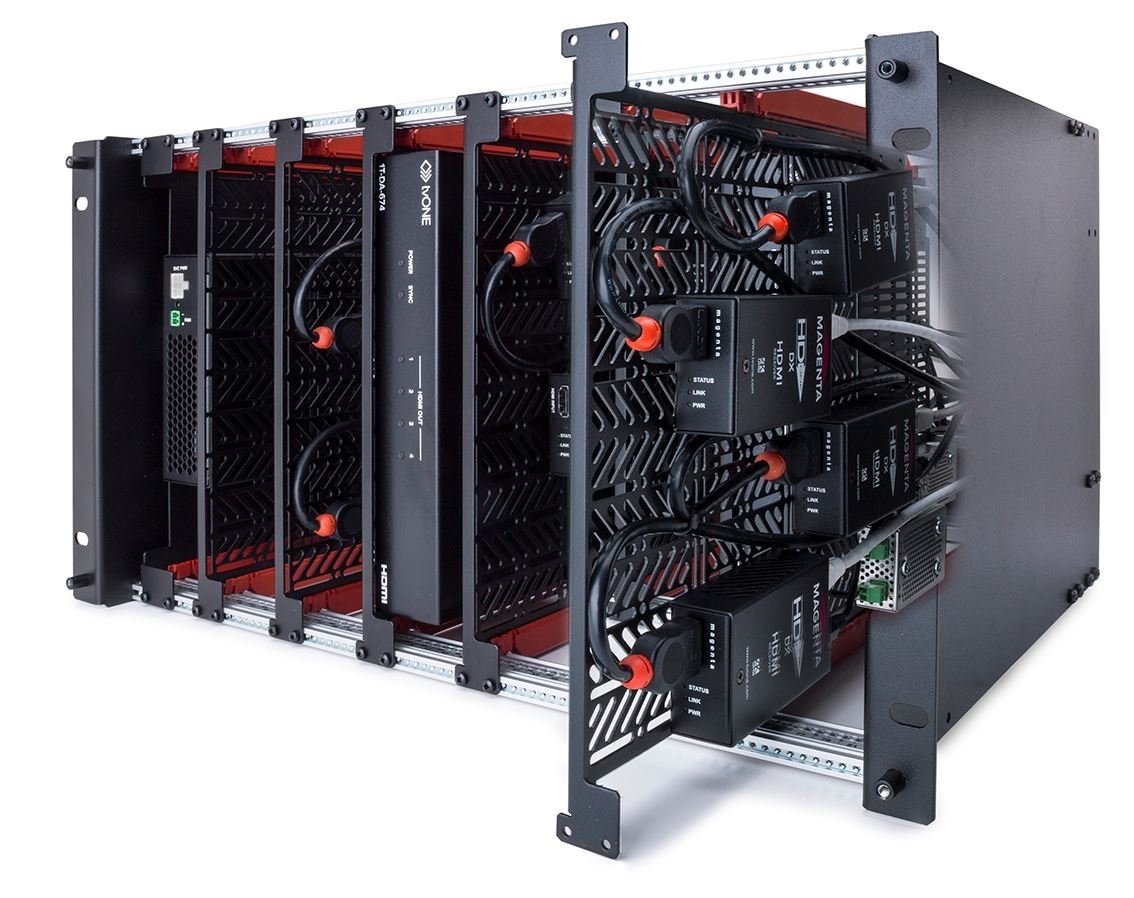

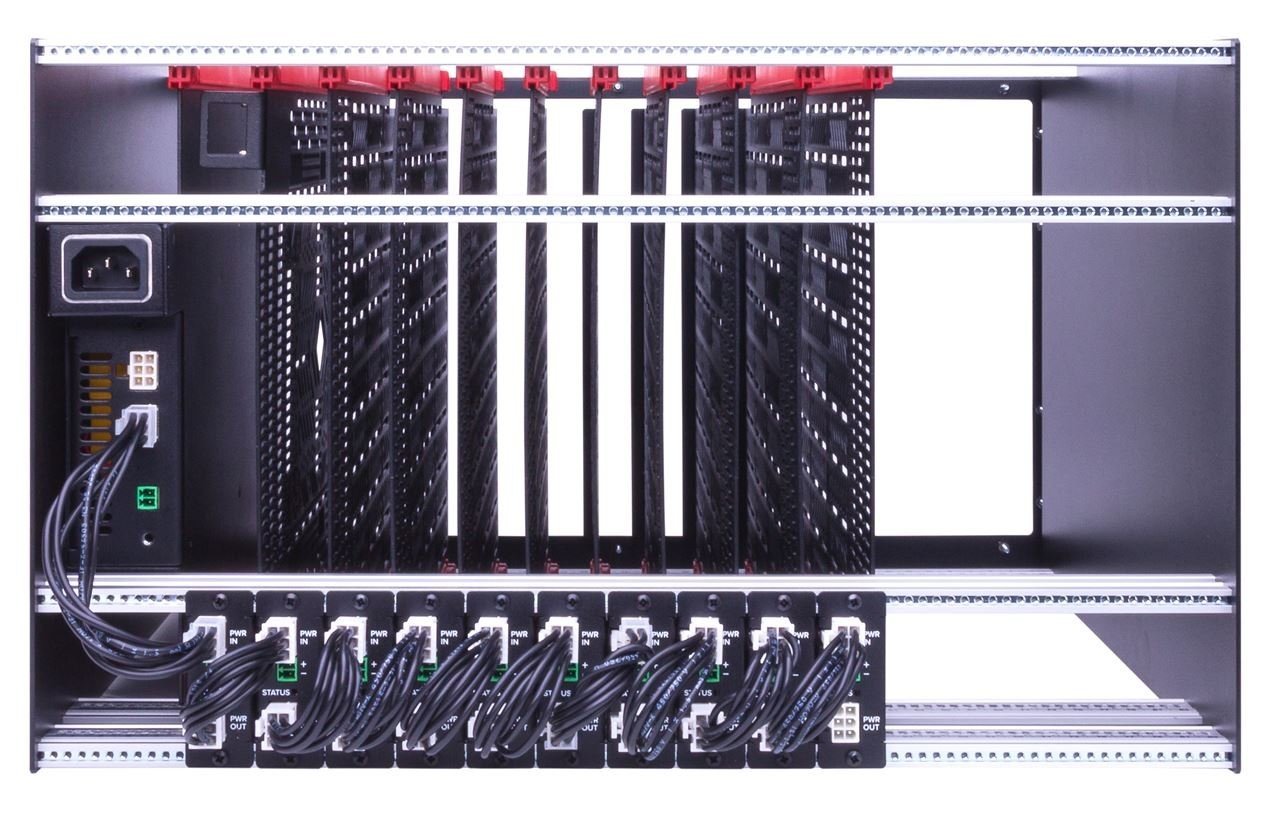

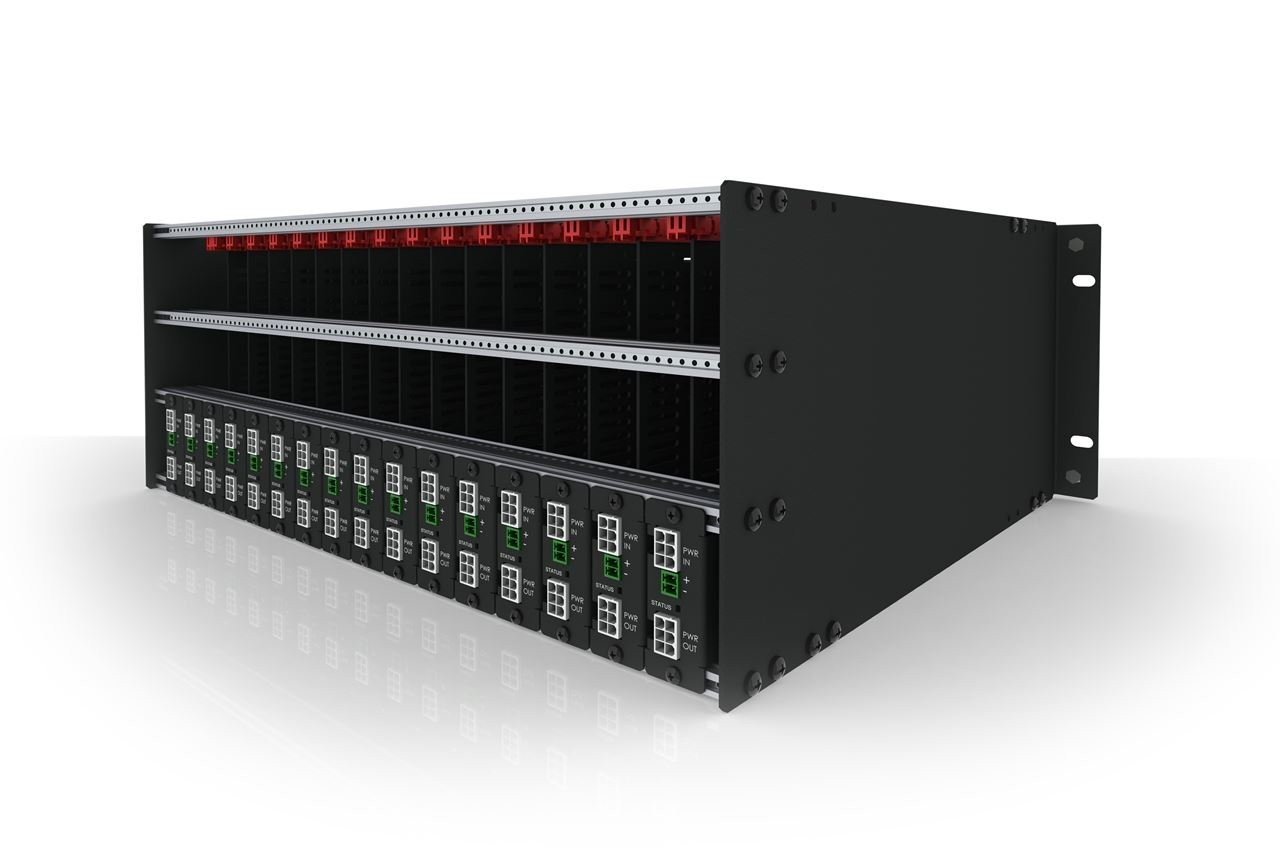

ONErack is a universal, powered mounting system that vastly improves rack installation of small devices. tvONE’s patent pending design converts randomly sized, externally powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. Chassis are available in 4RU, 5RU and 6RU and can hold up to 16 modules with up to 2 voltage selectors each. When using the ONErack Power Supply, each voltage selector, can provide power @ 5v, 7.5v, 9v, 12v, 13.5v, 18v, & 24v up to 35 watts. A pass thru is also available for custom power sources. Each ONErack Chassis can include 1 or more Power Supplies for added power which can also feed additional chassis, providing a clean power solution for all mounted devices. For service, just slide out a failed device, no cable ties, no guessing. Close the front of your ONErack with a Fan cover and keep it all cool. Up to 32 devices in just 4RU, powered and cooled!

ONErackAlliance Alpha 01
A growing list of manufacturers have joined the ONErack Alliance, formally approving ONErack and ONErack Spider as an accepted alternative to supplied power adapters. All ONErack Alliance members have one thing in common – they stand by their product warranties even after you cut the cord and leave your wall-wart power supply behind. See the ONErack Alliance members here.
Interested in joining the ONErack Alliance? Click here.
Rack it. Power it. Cool it. Do it with ONErack.



 Key Features
Universal mounting for any brand
Variable DC voltages from single power supply

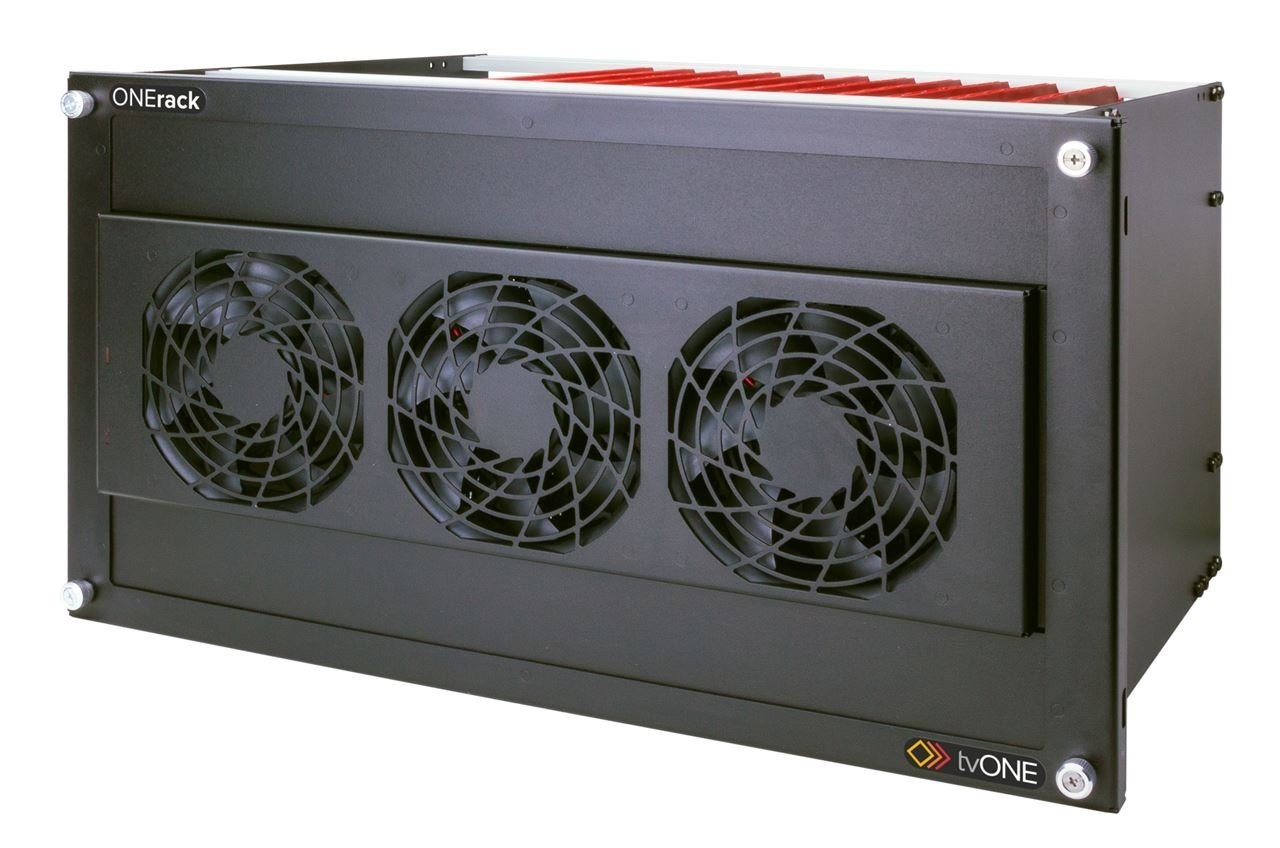

Active fan cooling system for high density applications
Available in 3 sizes; 4RU, 5RU, 6RU
Power up to 32 devices in 4RU, 64 devices in 5 or 6RU1
Each slot can provide 2 different voltages at the same time
Each slot has 7 different voltage settings
Pass thru allows for custom powering options
Fast easy installation of small devices
Simple, time saving serviceability


ONErack Brochure (US)

ONErack Brochure (EU)



ONErack Chassis US

ONErack Chassis EU

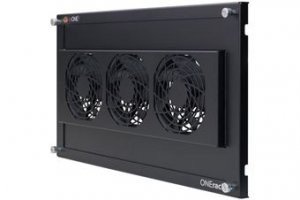

ONErack Fan Assembly US

ONErack Fan Assembly EU

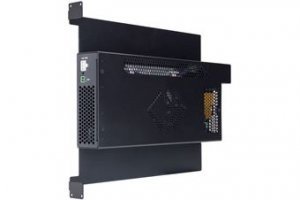

ONErack Power Supply US

ONErack Power Supply EU

ONErack Power Circuit

ONErack Installation Template

ONErack Extra Power US

ONErack Extra Power EU

ONErack Extra Mounting Rails US

ONErack Extra Mounting Rails EU

ONErack Cable Management US

ONErack Cable Management EU

ONErack Dual-Redundant Power Supply US

ONErack Dual-Redundant Power Supply EU

ONErack PSU Installation Guide US

ONErack PSU Installation Guide EU

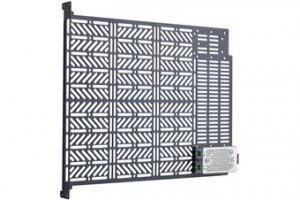

ONErack Module US

ONErack Module EU



ONErack Specifications (English)

ONErack Specifications (Deutsch)


Design Drawings

Module Surface Area (pdf)


CAD Drawings (DXF Format)

4RU PSU System Integrator Drawing (DXF)

4RU Module System Integrator Drawing (DXF)

4RU Fan System Integrator Drawing (DXF)

4RU Clear Plexi System Integrator Drawing (DXF)

4RU Blank System Integrator Drawing (DXF)

4RU Chassis System Integrator Drawing (DXF)

5RU PSU System Integrator Drawing (DXF)

5RU Module System Integrator Drawing (DXF)

5RU Fan System Integrator Drawing (DXF)

5RU Clear Plexi System Integrator Drawing (DXF)

5RU Blank System Integrator Drawing (DXF)

5RU Chassis System Integrator Drawing (DXF)

6RU PSU System Integrator Drawing (DXF)

6RU Module System Integrator Drawing (DXF)

6RU Fan System Integrator Drawing (DXF)

6RU Clear Plexi System Integrator Drawing (DXF)

6RU Blank System Integrator Drawing (DXF)

6RU Chassis System Integrator Drawing (DXF)


Architectural Specifications

ONErack Architectural Specifications (US)

ONErack Architectural Specifications (Deutsch)


ONErack videos

ONErack - Spotlight

ONErack - Introduction
Introduction showing the overview of ONErack

ONErack - Mount it
Mounting gear inside the ONErack

ONErack - Power it
Connecting and setting the voltage for your devices

ONErack - Cool it
Remove heat from your gear using the ONErack

ONErack - Service it
Tech support has never been easier using the ONErack

ONErack - Review
Sound and Communications Magazine

ONErack - Demonstration
InfoComm AVTV product report

ONErack - Fan Cover
Changing fan direction on your fan cover
