A CF-18 chassis fits up to 18 Voyager Compact Format transmitters or receivers Magenta Research
EOL NOTICE
This product has been scheduled for End of Life. If you require this product for your project, please contact your sales representative.

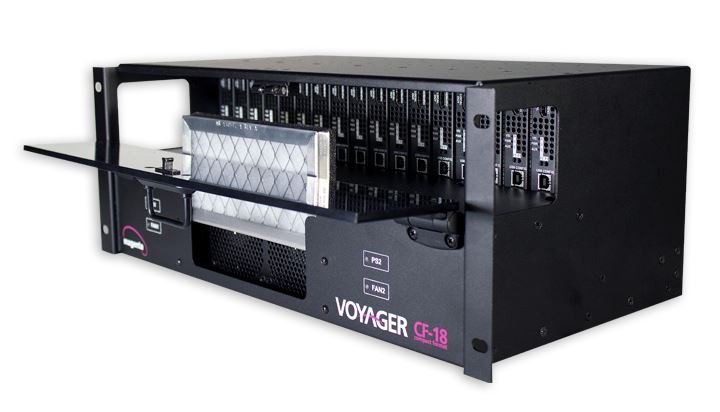

Designed for rack-centric, densely-populated fiber-optic-based pro AV systems, the Voyager CF-18 chassis fits up to 18 Voyager Compact Format transmitters or receivers in only 4U.
The CF-18 boasts dual (redundant) internal power supplies, eliminating the need for separate external ones, built-in rack-mounting ears to accommodate any standard 19” rack, easy access to all CF transmitter or receiver connections (both front and back) and a replaceable/cleanable air filter.
Item Description
Compliance CE, FCC Part 15 Class A, C-Tick, VCCI, cTUVus, RoHS
Connectors 18 slots for Voyager Compact-Format VGTX2 and VGRX2 modules.
Temperature Tolerance Operating: 32 to 104°F (0 to 40°C);
Storage: -4 to +140°F (-20 to +60°C)
Humidity Tolerance Up to 80% noncondensing
Air Filter Recommended service interval: 30 days, though it may be more or less frequent
depending on operating environment
Enclosure Type Enclosure: Powder coat over steel
Power 100 - 240VAC, 50/60Hz, 4 - 2A per Power Supply Module.
Note: There are 2 independent, fully-redundant AC Mains inputs
Size 7.0" H x 19.0" W x 11.0" D
(17.8 cm H x 48.3 cm W x 28 cm D)
Weight 34.3 lb. (15.6 kg) maximum (fully-populated)
Enclosure Steel (0.040”/1mm thick).
Powder-coat black paint, white epoxy graphics.
MTBF 100,000 hours
Rack Mount Standard, 4 RU height, 19” EIA format
