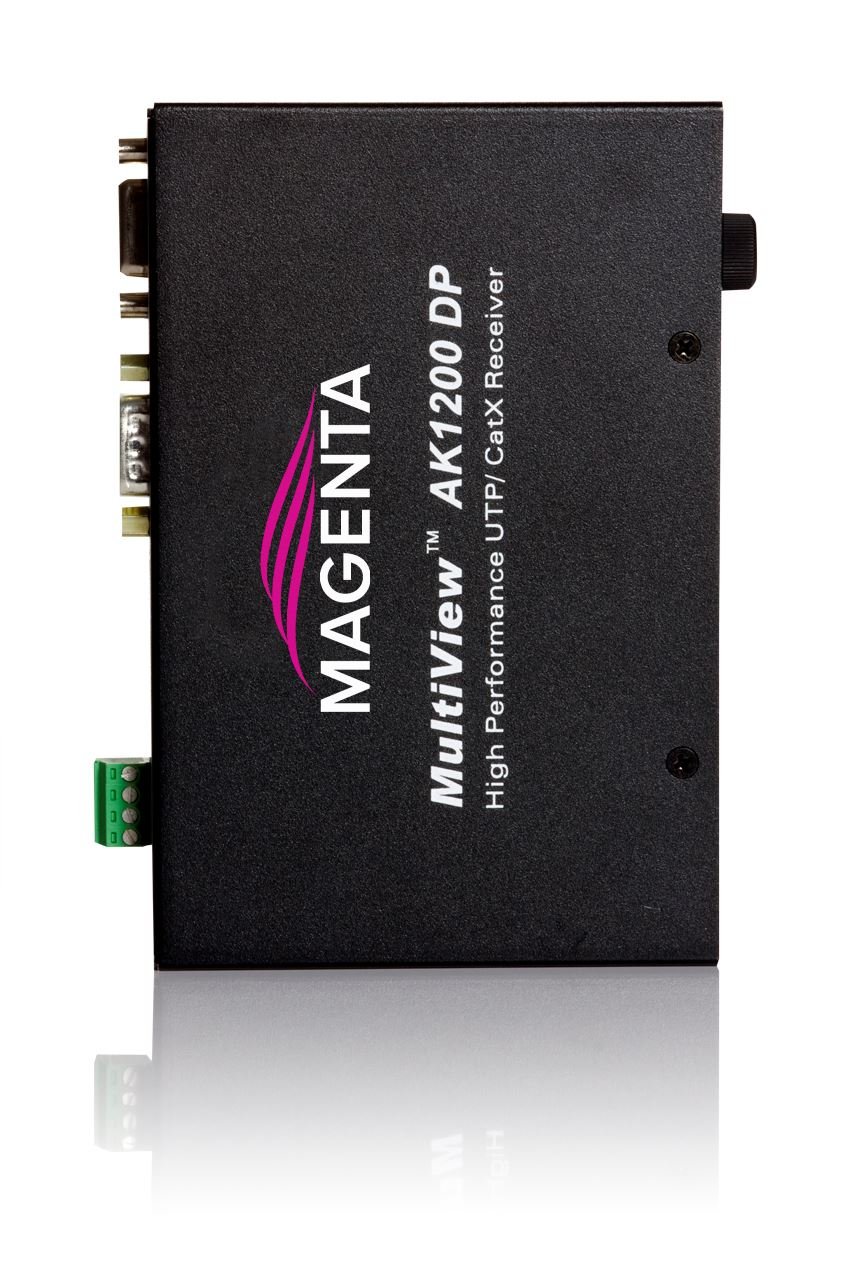

MultiView II AK1200DP-SAP Receiver for Magenta MultiView Signal Extension Systems. Allows 1200ft extension of high resolution video and RS232 commands over a single UTP cable. Magenta Research

Manufacturer: Magenta
SKU: 2620030-04

Compatible with all MultiView building block components, the MultiView AK1200DP receiver supports the extension of 1920x1200 resolution video from 1 to 1200ft/366m. The built-in daisy chaining capability allows the AK1200DP to be part of a chain of up to 12 functionally compatible receivers from the MultiView portfolio4. This includes the AK600DP-‘X’, AK1200DP-‘X’, XR2000DP-‘X’, MV500-‘X’ and K500TDC-‘X’ receivers. With distance equalization based on patent pending Digitally Controlled, Complex State Variable Filter technology, the AK1200DP delivers pristine image and sound quality across the entire supported distance range.

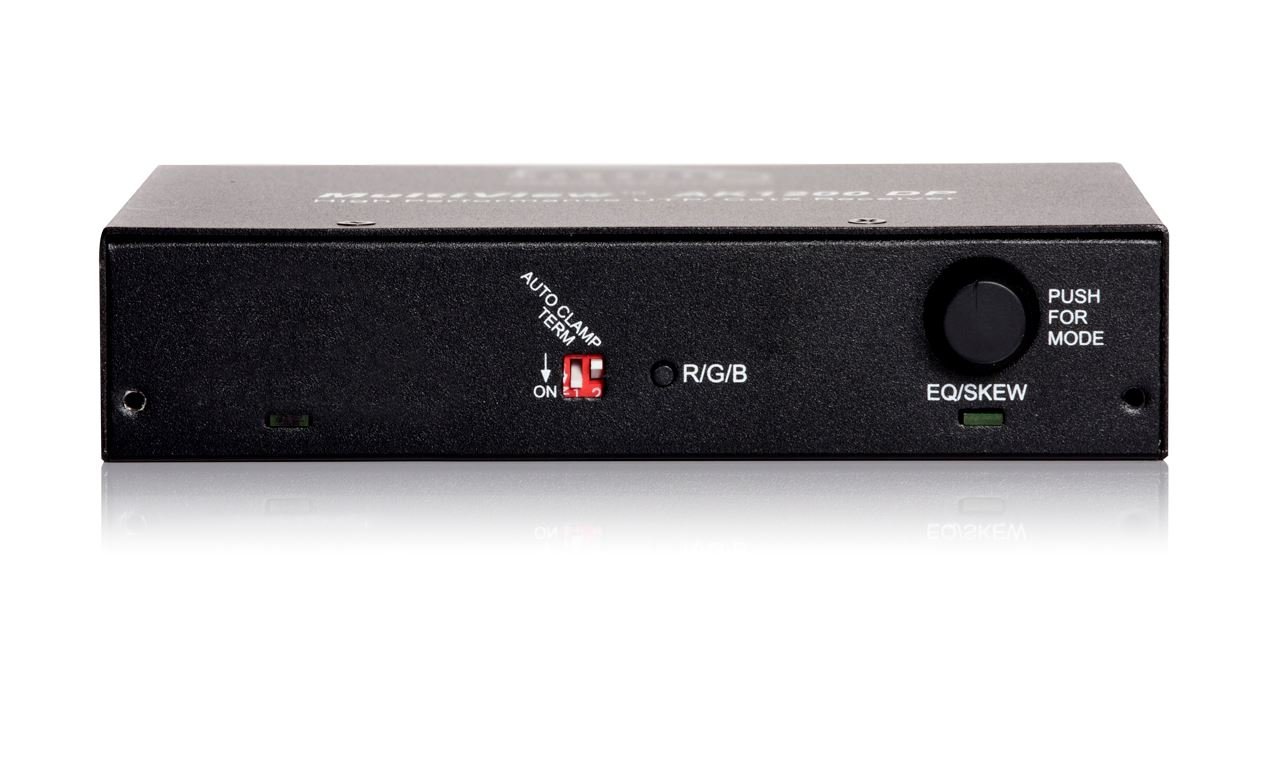

In applications where the distance and resolution requirements are high and skew free UTP cabling is not utilized, the AK600DP is also available with Magenta’s optional AkuComp II technology which can compensate for up to 62ns of cable skew. One knob controls all EQ and skew adjustments for optimal ease of use.

Key Features of the MultiView II AK1200DP-SAP

  • RGBHV and non-RGBHV video support
  • Supports 1920x1200 resolution from 1 to 1200ft/183m
  • Available in all MultiView-‘X’ functionality versions
  • Compatible with all MultiView transmitters, receivers, DA’s and matrix switchers

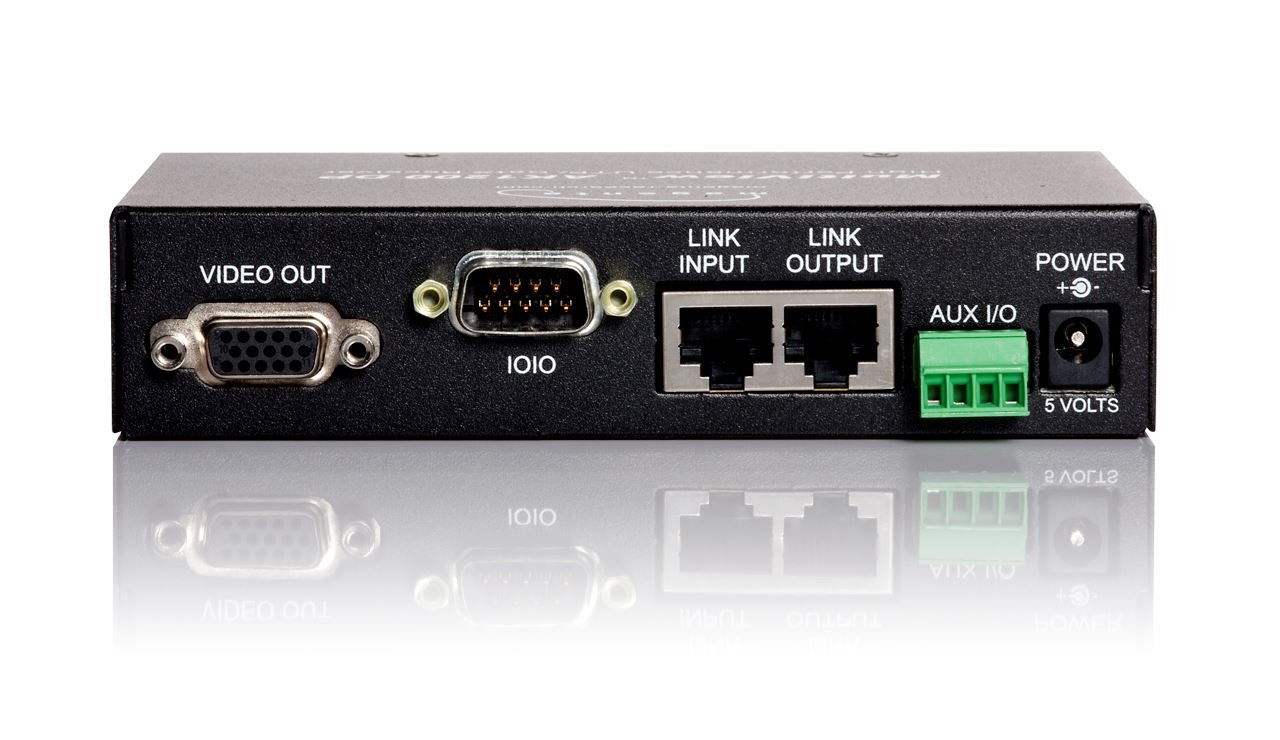

  • Local UTP output for daisy chain support
  • Optional Akucomp II technology for skew compensation
  • Optional mount kits and mini-dense power supplies for rack-mount / rigid installations
