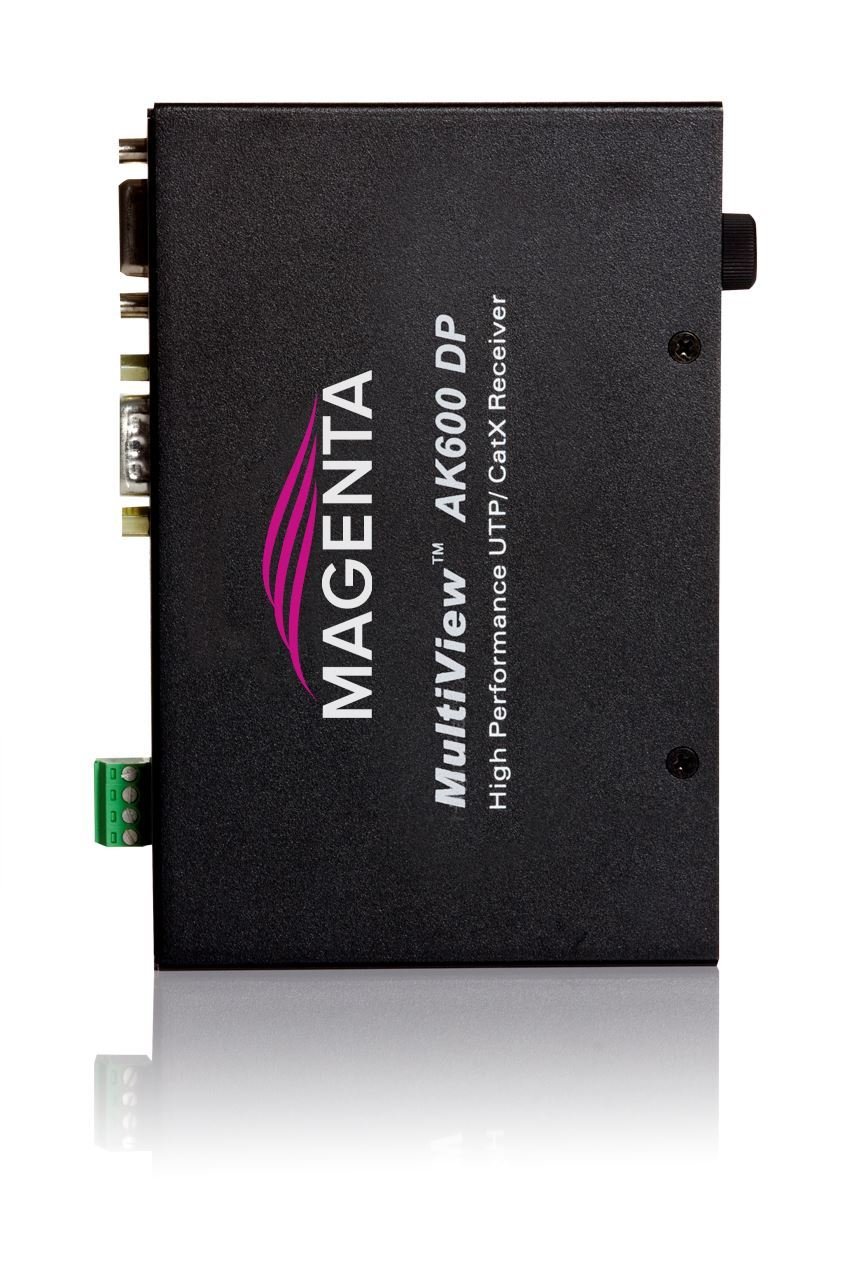

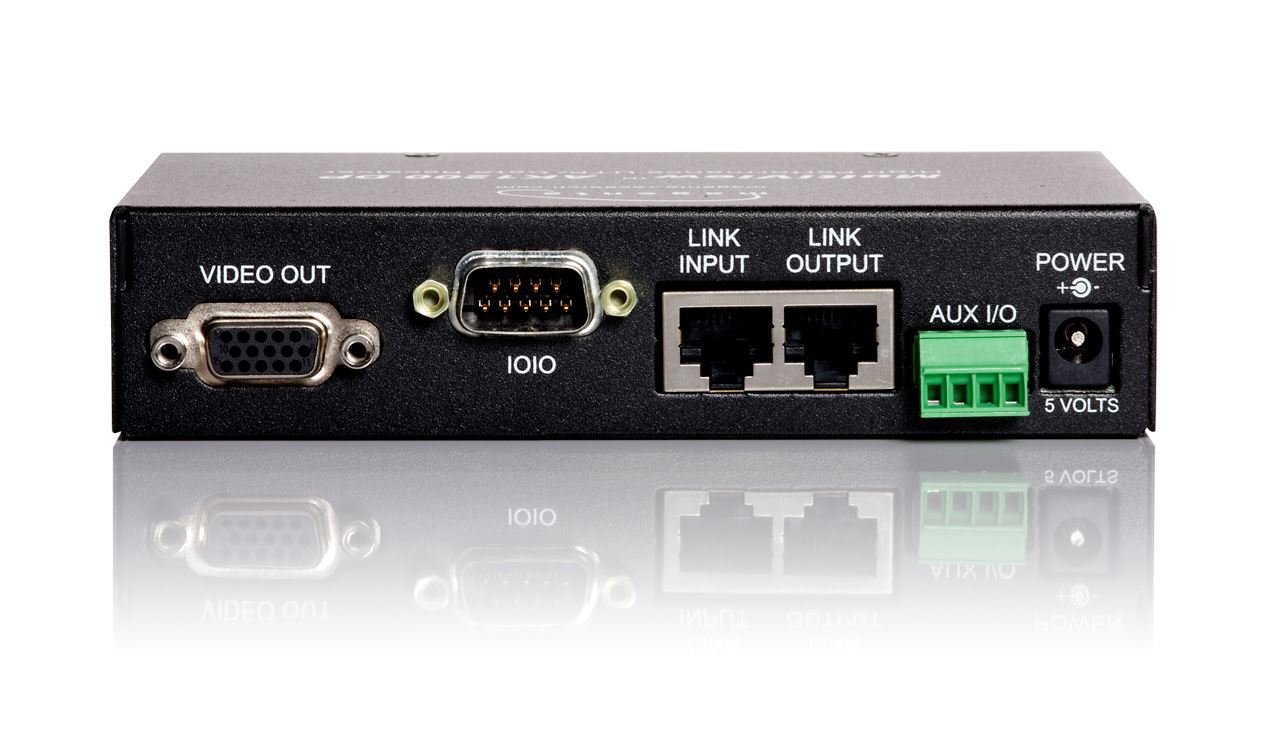

MultiView II AK-600DP-SAP Receiver for Magenta MultiView Signal Extension Systems. Allows 600ft extension of high resolution video and RS232 commands over a single UTP cable. Magenta Research

Manufacturer: Magenta
SKU: 2620019-04

Compatible with all MultiView building block components, the MultiView AK600DP receiver supports the extension of 1920x1200 resolution video from 1 to 600ft/183m. The built-in daisy chaining capability allows the AK600DP to be part of a chain of up to 12 compatible MultiView receivers4. This includes the AK600DP-‘X’, AK1200DP-‘X’, XR2000DP-‘X’, MV500-‘X’ and K500TDC-‘X’ receivers. With distance equalization based on patent pending Digitally Controlled, Complex State Variable Filter technology, the AK600DP delivers pristine image and sound quality across the entire supported distance range.

In applications where the distance and resolution requirements are high and skew free UTP cabling is not utilized, the AK600DP is also available with Magenta’s optional AkuComp II technology which can compensate for up to 62ns of cable skew. One knob controls all EQ and skew adjustments for optimal ease of use.
