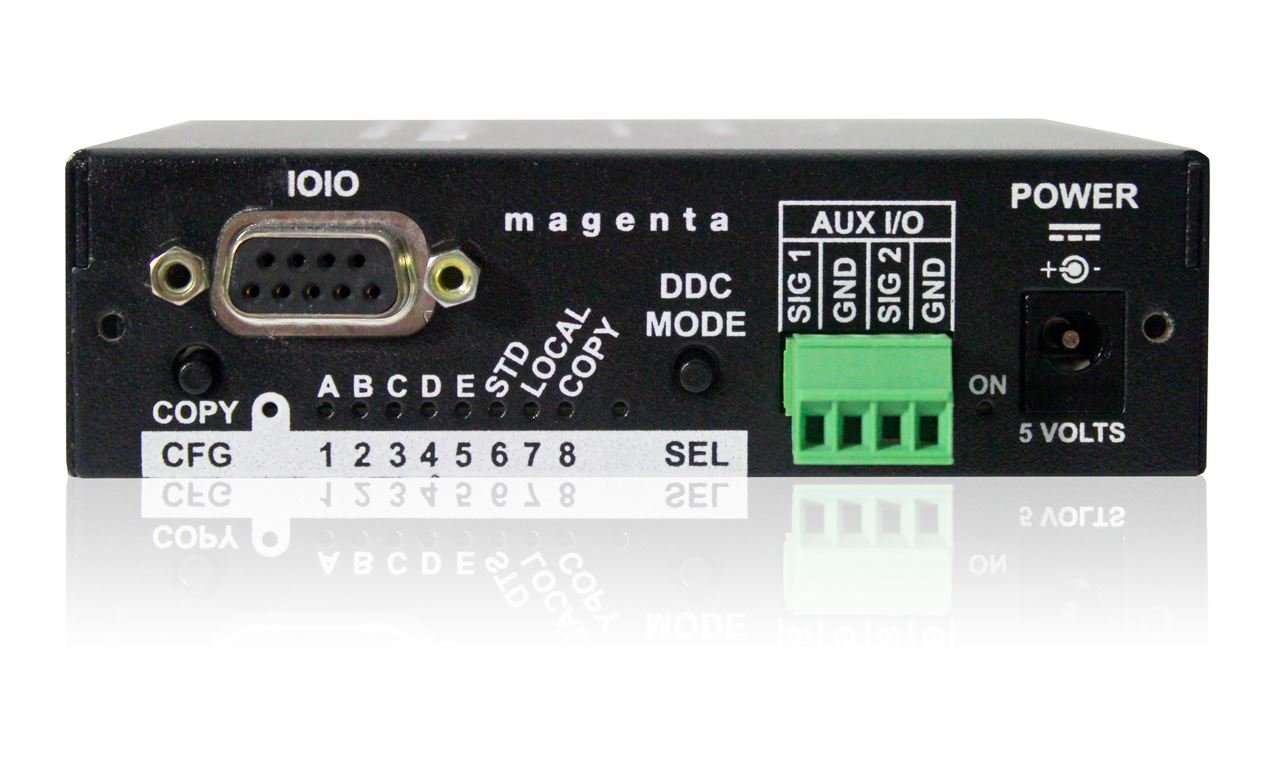

2620016-04 Multiview II XRTx -A-S, -SAP2
X

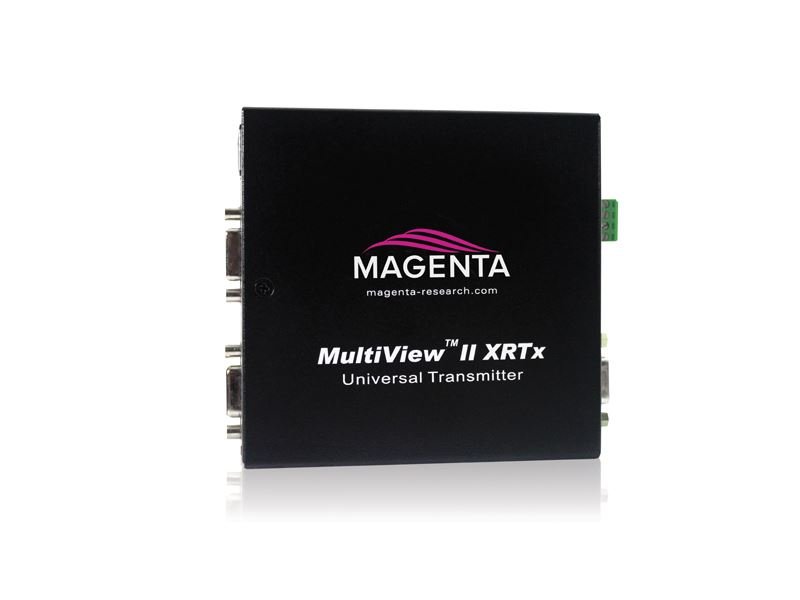

2620016-04 Multiview II XRTx -A-S, -SAP
X

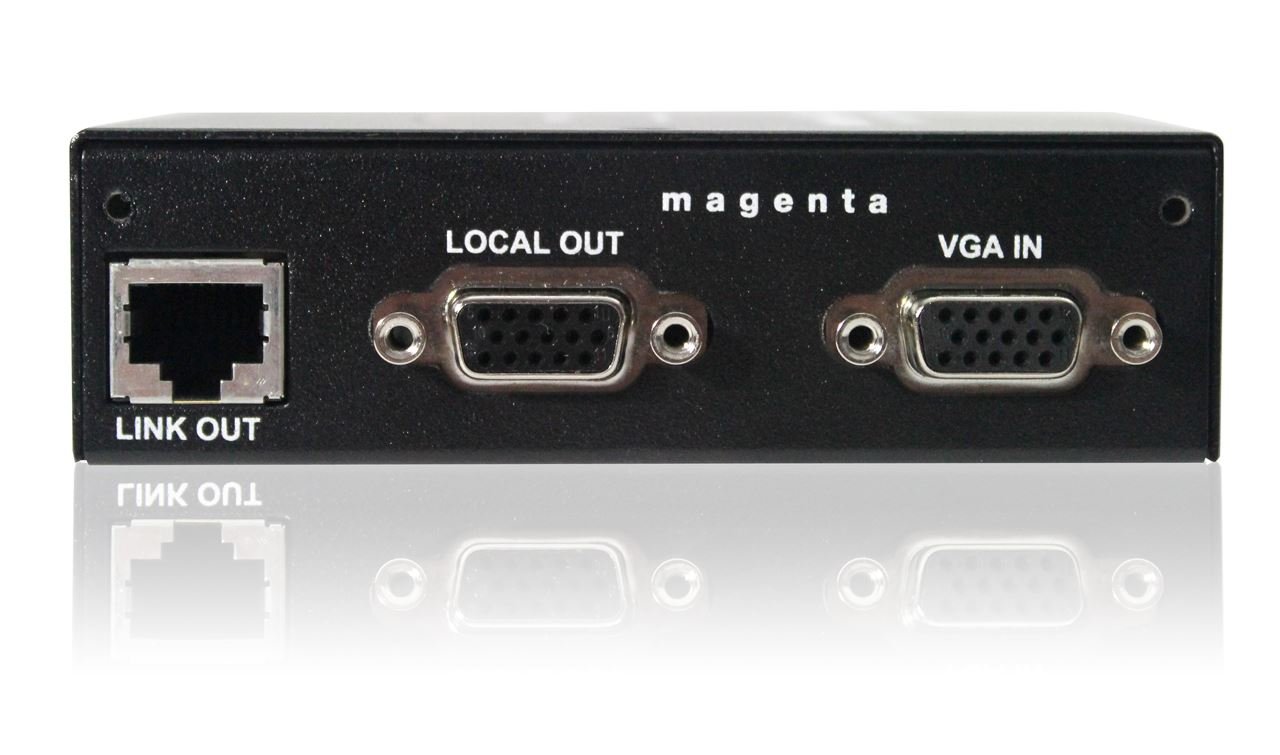

2620016-04 Multiview II XRTx -A-S, -SAP.jpg
2620016-04 Multiview II XRTx -A-S, -SAP2

2620016-04 Multiview II XRTx -A/-S, -SAP

Video and Audio UTP Transmitter with local output for MultiView or MONDO Signal Extension Systems Magenta Research

Manufacturer: Magenta
SKU: 2620016-04
Print

A key building block in the MultiView video over UTP range, the improved MultiView II XRTx transmitter is available in every configuration (-A/-S and –SAP) and can be paired with any component in the MultiView system, including all receivers, distribution amplifiers and matrix switchers.

When used with the appropriate receivers, the XRTx delivers the world’s longest UTP extension capability at the highest resolution—1920x1200 at 2000ft/609m.

New functionality includes improved sync technology—making 1080p (and higher) video replication easier to replicate than ever before)—and a more-user friendly configuration interface, as virtually any necessary adjustments to an XRTx can now be done externally.

Functionality
  -A -S -232 -SA -SAP
Video In HD15-F HD15-F HD15-F HD15-F HD15-F
Video Out HD15-F HD15-F HD15-F HD15-F HD15-F
Audio In 4-pin Phoenix - - 4-pin Phoenix 4-pin Phoenix
Audio Out - - - - -
Serial In
4-pin Phoenix

(replace audio-in)
4-pin Phoenix DB9F DB9F DB9F
Serial Out - - - - -
UTP In - - - - -
UTP Out RJ-45 RJ-45 RJ-45 RJ-45 RJ-45
General Specifications
Video Support All VESA modes to WUXGA (1920x1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p
Resolution / Refresh Rate MultiView Receiver Dependent
Required Source Impedence Video Out: 75 Ohms; Audio Out (if applicable) 600 Ohms maximum;

SPDIF Audio models: 75 Ohms
Required Destination Impedence Video In: 75 Ohms; Audio In (If applicable) 600 Ohms maximum;

SPDIF Audio models: 75 Ohms
  -A -S -232 -SA -SAP
Audio Support

Left/Right Summed Audio


47K ohms input impedance.

A source device with 600 ohms maximum output impedance is recommended (analog audio input mode)

- -

Stereo Audio


10K ohms input impedance. A source device with 600 ohms maximum output impedance is recommended.


Stereo Audio


10K ohms input impedance. A source device with 600 ohms maximum output impedance is recommended.


Serial Support - Simplex-serial, any speed up to 115.2K baud. Transparent to format and protocol. Any speed up to 115.2K baud (depending on application). Transparent to format and protocol. Speed fixed at 9600 baud. Transparent to format and protocol. Speed is adjustable in 9 steps from 1200 to 115.2K baud; format is fixed to 8 data no parity; transparent to protocol.
Cable Supported Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP), low-skew preferred

or skew-free cable. Please see the "Recommended UTP" page for more detailed information.
Cascading Capability Yes, Video Only
Compliance CE; FCC Class A, IC Class A, I.T.E. Device, RoHS
Power +5 VDC @ 1.2 Amps max.,

Consumption: 6 Watts Maximum
Temperature Tolerance Operating: 32 to 104°F (0 to-40°C)    Storage: -4 to 140°F (-20 to 60°C)
Humidity Tolerance Up to 80% Non-Condensing
Mounting Rack Mount Standard/Wall Mount Optional
Enclosure Steel, Black Powder-Coat Finish
Size 1.2"H x 4.2"W x 4.3"D (3.1 x 10.4 x 10.9 cm)
Weight 0.6 pound (0.27 kg)
Skew Compensation 1.0 pound (0.45 kg)




Key Features of the MultiView II XRTx Video and Audio UTP Transmitter

  • RGBHV and non-RGBHV1 video support
  • Available in all MultiView-‘X’ functionality versions
  • Compatible with all MultiView transmitters, receivers, DA’s and matrix switchers
  • All external configuration scheme
  • Improved sync technology
  • Supports 1920x1200 resolution from 1 to 2000ft/609m2
  • Local out / Cascade support3
  • DDC / EDID support
  • Optional mount kits and mini-dense power supplies for rack-mount / rigid installations
