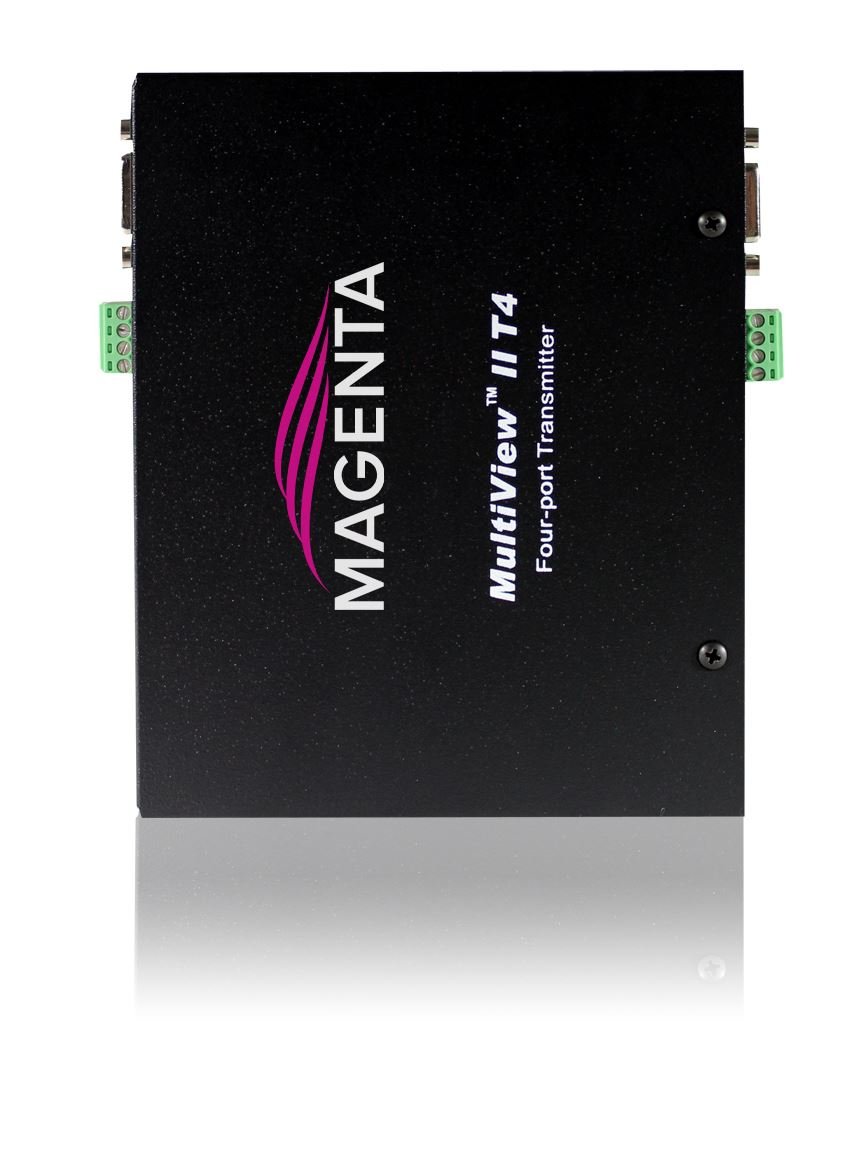

MultiView II T4- 4-port UTP Transmitter for analog video and stereo audio in Magenta MultiView Signal Extension Systems. Magenta Research

Manufacturer: Magenta
SKU: 2620003-02

The MultiView II T4-A Four Port Transmitter has been scheduled for End of Life. If you require a MultiView II T4-A Four Port Transmitter for your project, please contact your sales representative.

Enabling a wide variety of point to multi-point configurations, the MultiView II T4 transmitter has 4 UTP output ports, which can be connected to 4 receivers, or 4 daisy chains of up to 12 receivers each, for a total of 48 receivers. Additional outputs can be enabled by cascading the local output port to additional T4 or other transmitters.

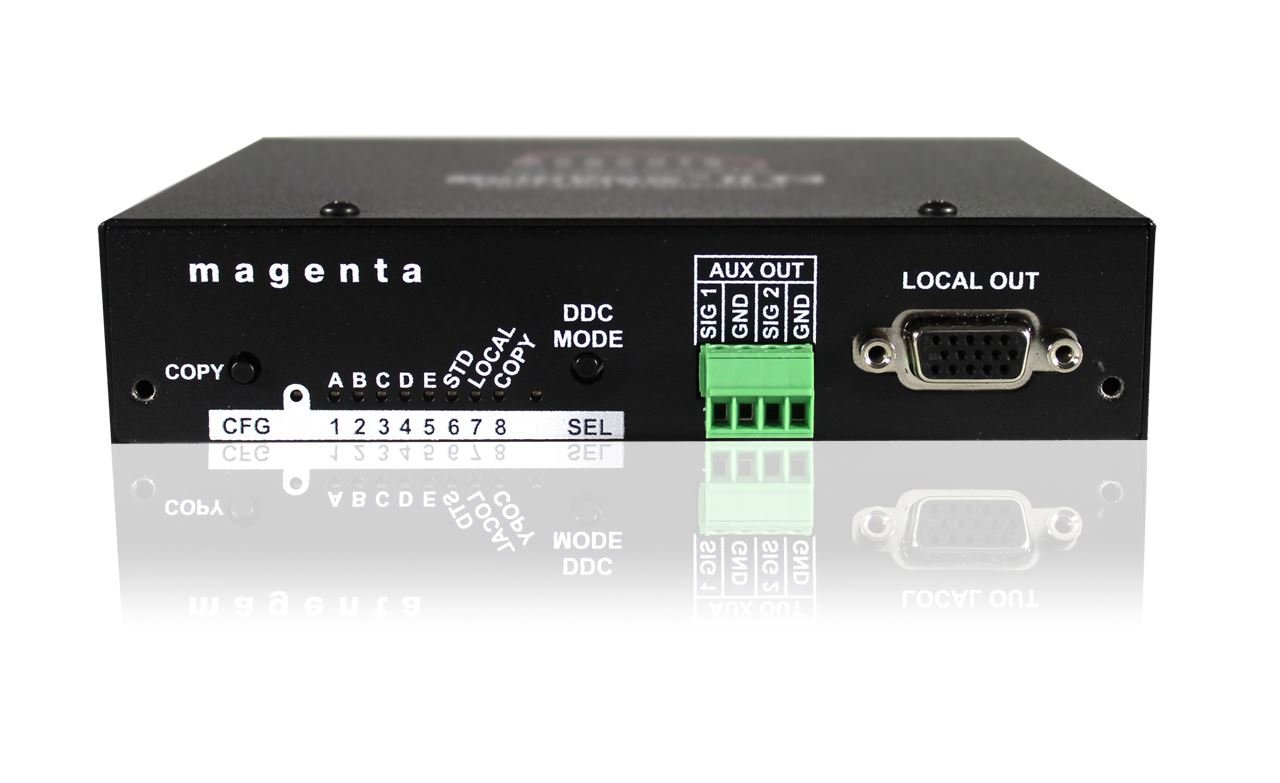

Totally redesigned, the MultiView II T4 now features DDC/EDID modes of operation that ensure replicating crisp 1080p video at 2,000 feet is easier than ever before. Three DDC modes are included—Magenta Magic, LOCAL (stores DDC from a local display) and COPY (stores DDC info from any previously connected display).

Also new are a series of external buttons that grant users total control over RepliSync modes, fourth-pair configurations (audio or serial) and AC/DC coupling options.

The T4 transmitter is available in MultiView-A and MultiView-S functionality and is compatible with –A and -S transmitters, receivers, distribution amplifiers and matrix switchers. When used with the appropriate receivers, the T4 delivers the world’s longest UTP extension capability at the highest resolution—1920x1200 at 2000ft/609m.

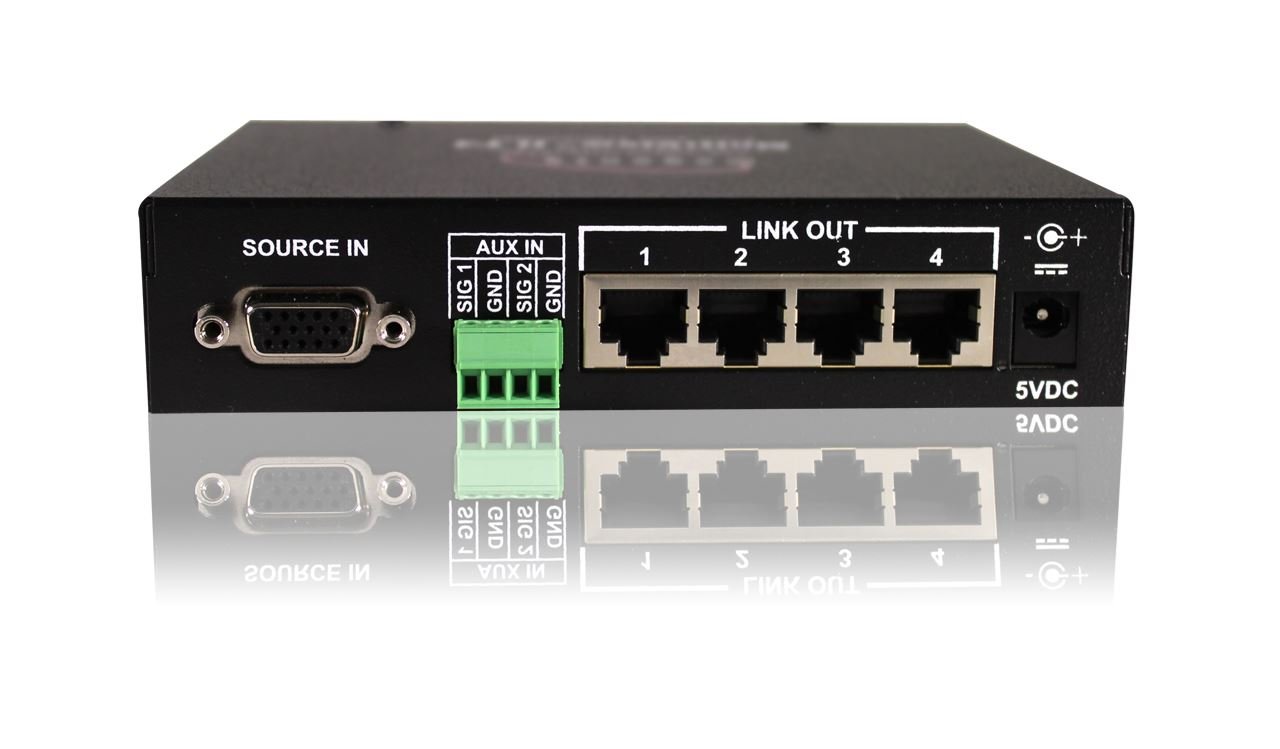

Video In HD15-F
Video Out HD15-F
Audio In 4-pin Phoenix
Audio Out 4-pin Phoenix
Serial In -
Serial Out -
UTP In -
UTP Out (4) RJ-45
General Specifications
Video Support All VESA modes to WUXGA (1920x1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p
Resolution / Refresh Rate MultiView Receiver Dependent
Audio Support Left/Right Summed
Serial Support -
Video-input Standard VGA (HD-15) video connection. The R/G/B signals have a 75-ohm input impedance.

DDC is supported.

Auxiliary Signals (only one type at a time):

L+R summed audio input: 47K ohms input impedance. A source device with 600

ohms maximum output impedance is recommended.(analog audio input mode).

S/PDIF input: 75 ohms input impedance (S/PDIF input mode).

Simplex RS-232 input: 4.75K ohms input impedance (simplex RS-232 mode).
Video-output Standard VGA (HD-15) video connection. Will drive a 75-ohm impedance on the R/G/B signals.

DDC is supported.

Auxiliary Signals (only one type at a time):

L+R summed audio output: Will drive a 600 ohm (or greater) load impedance. (analog audio output mode)

S/PDIF output: Will drive a 75 ohm (typical for S/PDIF) load (S/PDIF output mode).

Simplex RS-232 output: Will drive a 600 ohm (or greater) load impedance (simplex RS-232 mode).
Cable Supported Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP)

or skew-free cable. Please see the "Recommended UTP" page for more detailed information.
Cascading Capability Yes
Compliance CE and FCC Class A (ITE Device)
Power Input voltage: +5 VDC @ 1 Amp max.

Consumption: 5 watts maximum
Temperature Tolerance Operating: 32 to 104°F (0 to-40°C) Storage: -4 to 140°F (-20 to 60°C)
Humidity Tolerance Up to 80% Non-Condensing
Mounting Rack Mount Standard/Wall Mount Optional
Enclosure Steel
Size 1.2"H x 5.6"W x 4.5"D (3.1 x 14.2 x 11.4 cm)
Weight 1.1 pound (0.5 kg)
Skew Compensation Not Applicable on Transmitters
Warranty 5 Years

Key Features of the Multiview II T4-A

· RGBHV and non-RGBHV video support
· 4 UTP output ports supporting up to 48 receivers per transmitter
· Available in MultiView-A and MultiView-S functionality versions
· Compatible with all MultiView-A and -S transmitters, receivers, DA’s and matrix switchers
· External DDC/EDID controls
· External sync, coupling and 4th pair controls
· Supports 1920x1200 resolution from 1 to 1200ft
· Local out / Cascade support
· Optional mount kits and mini-dense power supplies for rack-mount / rigid installations
