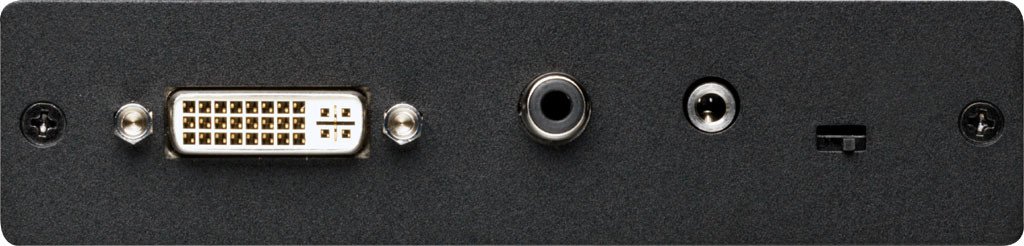

1t-ct-521-front
X
1t-ct-521-rear

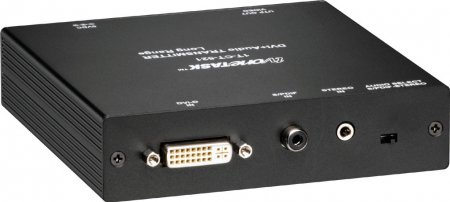

1t-ct-521-iso

[Discontinued] 1T-CT-521

Transmitter, used in conjunction with the 1T-CT-524 Receiver, can reliably transport high resolution DVI-D signals plus analog or digital audio to distances up to 100 meters (325 feet),

Category: Legacy Products
Manufacturer: tvONE
SKU: 1t-ct-521
Print

PRODUCT DISCONTINUED
The 1T-CT-520 Series has been discontinued. Please see the MultiView II DVI Transmitter (2620063-02)MVII-DVI-RX-1K-S/A and MVII AK1200DP-A. If you require a 1T-CT-520 series product for your project, please contact your sales representative.

1T-CT-520 DVI-D+Audio CAT.5 Extender provides a means for the transmission of DVI-D signals at resolutions up to 1920x1200 and 1080p, plus either S/PDIF or analog stereo audio, over Cat.5/5E or Cat.6 cable at great distances. The 1T-CT-521 Transmitter, used in conjunction with the 1T-CT-524 Receiver, can achieve distances up to 100 meters (325 feet), while use of the 1T-CT-528 Receiver can increase distances up to 250 meters (800 feet). Achieving such long distances with a DVI-D signal at 1080p requires use of a unique analog/digital hybrid transmission system. For normal operation, one Cat.5/5Eor Cat.6 cable is required with the length dependent on the receiver being used.

Both Receivers provide Gain and Equalization adjustments and the 1T-CT-528 Receiver provides additional signal processing via two user selectable DIP switches which further equalize the DVI-D Video and the audio signals. The 1T-CT-521 Transmitter provides EDID capability as a standard feature. The system is fully compatible with all DVI 1.0 signals and seamlessly integrates the selected audio signal into the signal path. The unique TV One-task locking power connectors are used to enhance overall system security.
