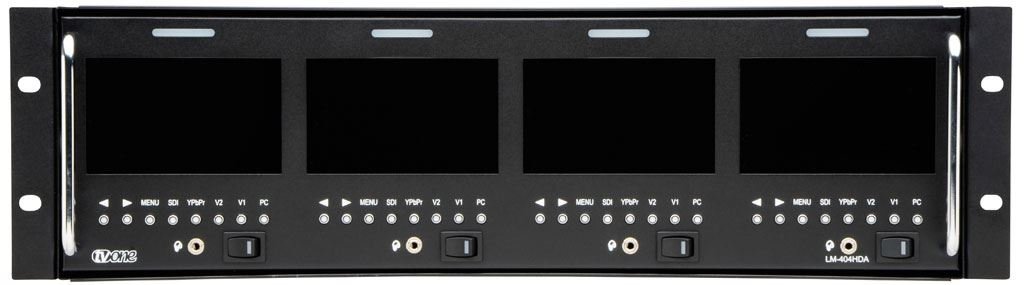

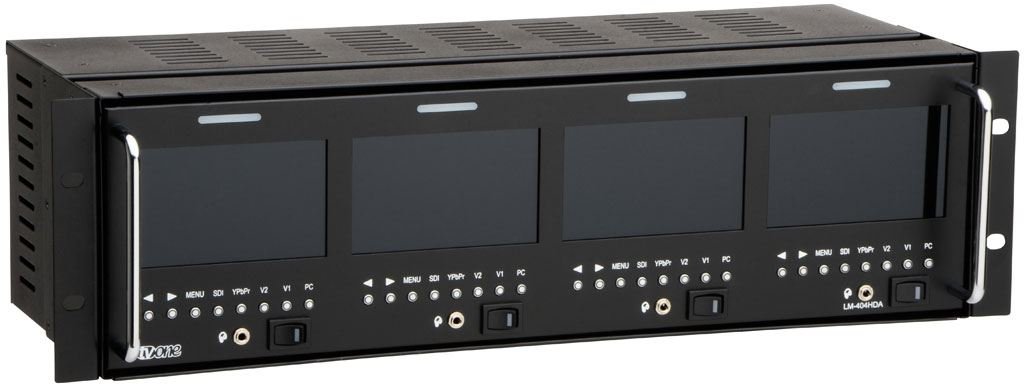

LM-404HDA Rack Mountable Quad 4.3" Color Monitor for the broadcast and professional market.

Category: Accessories
Manufacturer: tvONE
SKU: LM-404HDA
Print

EOL NOTICE

This product has been scheduled for End of Life.  There is no replacement for this product. Effective discontinue date is August 27, 2019.

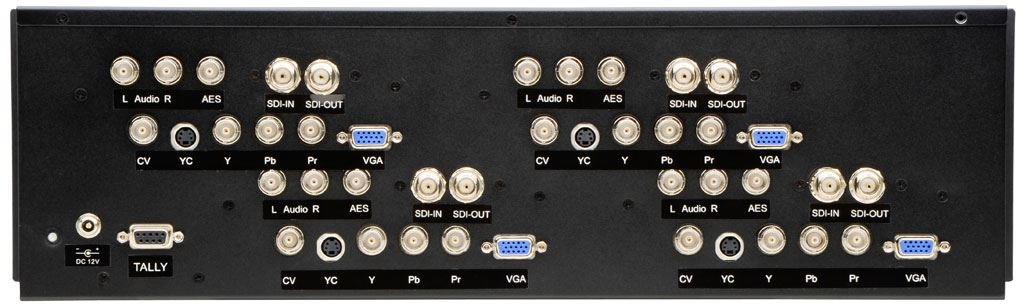

LM-404HD is a high performance Multi-format, Quad Color LCD Monitor for the broadcast and professional market. A multitude of video signal formats may be accurately monitored. The high brightness, wide viewing angle, excellent contrast ratio and high definition color result in an outstanding image. The unit features inputs for SDI (either SD or HD) with an active output, Analog RGBHV, YPbPr Component Video, a Composite Video and a YC input. NTSC and PAL Television Standards are supported and automatically detected.

Front panel Tally LEDs can be activated external via the DB9 connector. The Menu contains all the necessary controls to adjust Contrast, Brightness, Sharpness, Color Level (R-G-B), and other parameters necessary for optimum monitor performance. Results of these adjustments can be viewed via the On Screen Display. A rack mount kit is included that can tilt up or down. Although the monitor has excellent viewing angles, the tilt feature can be beneficial when circumstances necessitate mounting the monitor considerably above or below normal eye level.

 Key Features of the LM-404HDA

• Inputs: SD/HD-SDI, RGBHV, YPbPr, CV & YC
• Resolutions up to 1024x768, 1080p
• High Brightness, Pro Grade LCD Panels
• 16.7 Million Colors
• 400:1 Contrast Ratio
• Blue Only and Sync Delay modes for easy setup
• Audio Monitoring and Dual Tally LEDs
• 130° Left/Right and 110° Up/Down View Angles
• Vertically Tiltable Rackmount Housing
• Locking External DC Power Supply

 CAD Drawings (DXF format)

LM-404HDA Block Diagram

LM-404HDA Rack Mount Panel Drawing



Manuals

LM-404HDA Manual
