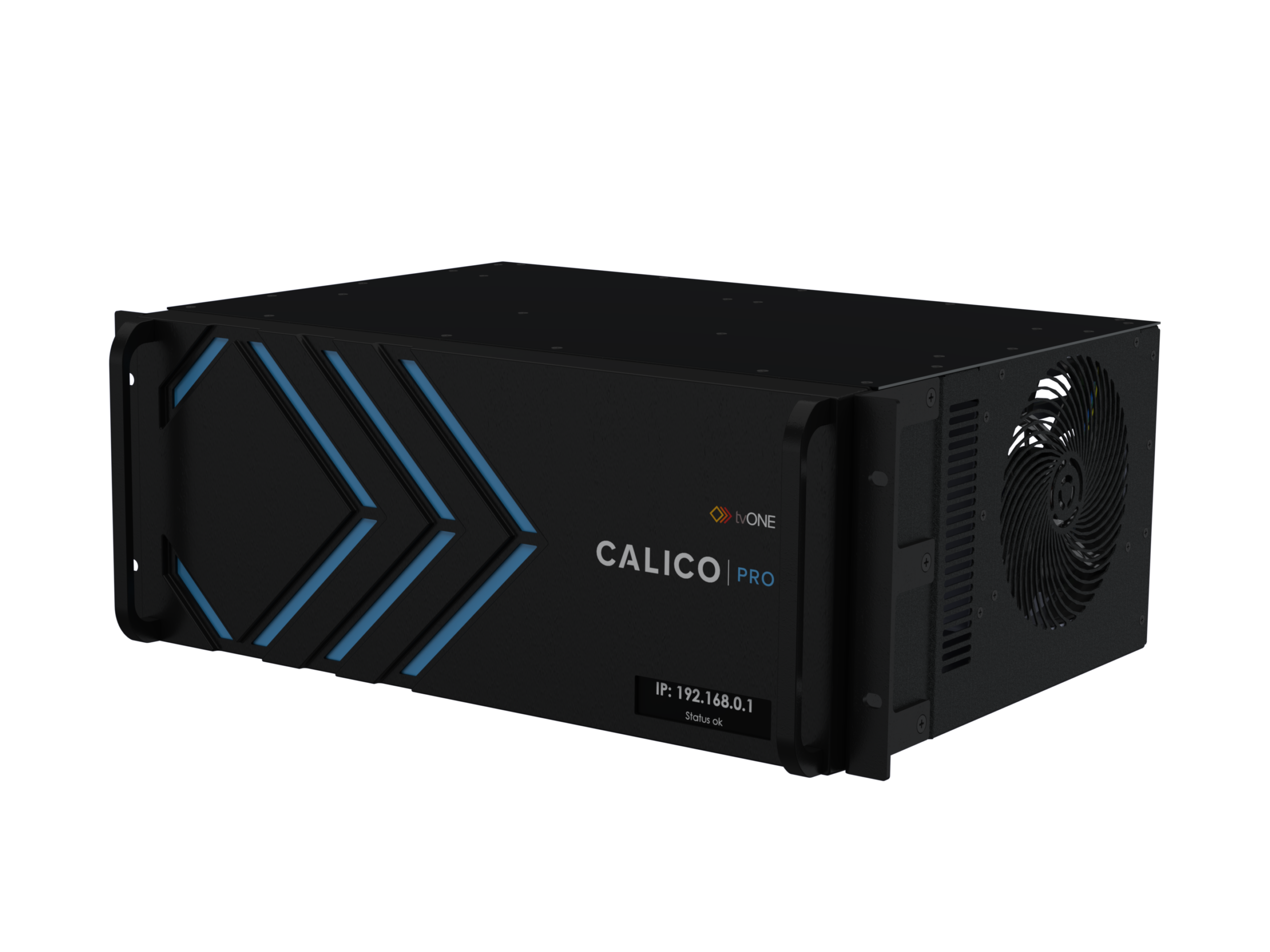

CALICO PRO 4200

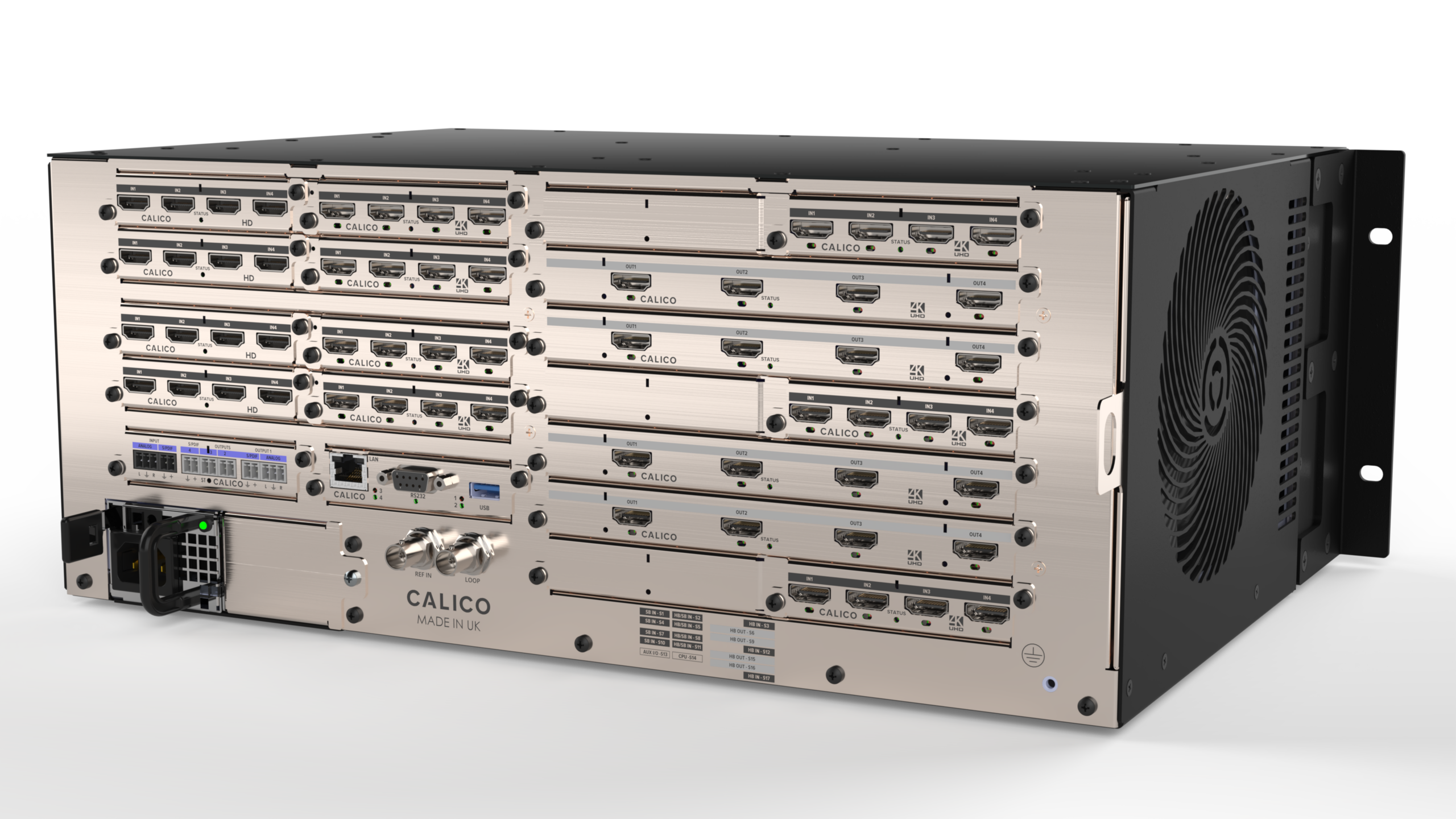

CALICO PRO 4200 - Image 2

CALICO PRO 4200

SKU: C7-PRO-4200
Find a distributor

Coming soon! High bandwidth 4RU video processor based on a fifth generation 4K, 10bit processing engine.

Download Spec Sheet

Overview

CALICO PRO, C7‑PRO‑4200 is a 4RU, 10‑bit HDR video processor with a fully modular architecture supporting up to 32 × 4K60 or 44 × 1080p60 inputs and 16 × 4K60 outputs, together with a built‑in media store for background images and labels. Advanced input mapping and output mapping provide complete flexibility for large‑scale LED and multi‑screen environments.

CALICO PRO is optimised for unrestricted, uncompressed, end‑to‑end performance even when working with 4K60 video. Using patented tvONE technology, CALICO delivers high‑data‑rate video processing with ultra‑low latency, combining both physical and IP‑friendly workflows.

The 4RU CALICO PRO is the ultimate solution for LED applications of every size, capable of driving up to 128 million pixels across sixteen outputs. It delivers hundreds of low‑latency 4K video windows with fluid performance, 24/7 reliability, and a powerful labelling engine for clear, consistent system management.

Key Features

  • Scalable I/O: Start with 8 inputs and 4 outputs as standard, then expand effortlessly with modules for AV, IP, and broadcast-ready workflows.
  • High-performance video: Drive massive, creative canvasses with hundreds of layers in ultra-high resolution and the highest quality.
  • Flexible content control: Input mapping, still image store, keying, and onboard audio streamline setups and maximize efficiency.
  • Dynamic labelling engine: Easily create and apply text, image, or live source labels.
  • Advanced LED & rotation tools: Simplify Direct View LED setups and freely rotate sources/outputs 0°–360° for creative freedom.
  • Canvas Watch: Monitor your expansive LED, edge-blended projection, or display set ups with ease, for complete peace of mind.
  • Best-in-class processing: Enjoy 10-bit precision, imperceptible latency, and seamless HDR/SDR conversion across multiple standards.
  • Smart, intuitive control: Command it all with CALICO Studio’s sleek interface, mobile apps, and real-time API integrations.
  • Rock-solid reliability: HTTPS-secured control, 5-year warranty, and optional dual PSUs trusted by system integrators and live events pro worldwide.

tvONE products are trusted TAA-compliant video processors, signal management and racking and power solutions.

Downloads, brochures and info documents

Brochures (PDF)

CALICO PRO 2U Onesheet

CALICO PRO Brochure (US)

CALICO PRO Application Flipbook

CALICO Application Brochure (US)

CALICO Application Brochure (EU)

CALICO Application Brochure (French)

Onesheets (PDF)

CALICO + Matrox ConvertIP – Smarter Control Rooms

CALICO Studio Software

CALICO Studio Software Download

CAD Drawings (DXF format)

CALICO PRO Chassis Drawing

CALICO PRO Module Mechanical Drawing

Quick Start Guide & User Manual

CALICO PRO Help

Architectural Specifications

CALICO PRO Architectural Specifications

CALICO PRO Architectural Specifications – French

CALICO PRO Architectural Specifications – German

Programming Info

api.tvone.com

CALICO Studio Mobile App

Apple Store

Google Play

Need guidance? Talk to an expert.

Contact our sales team
