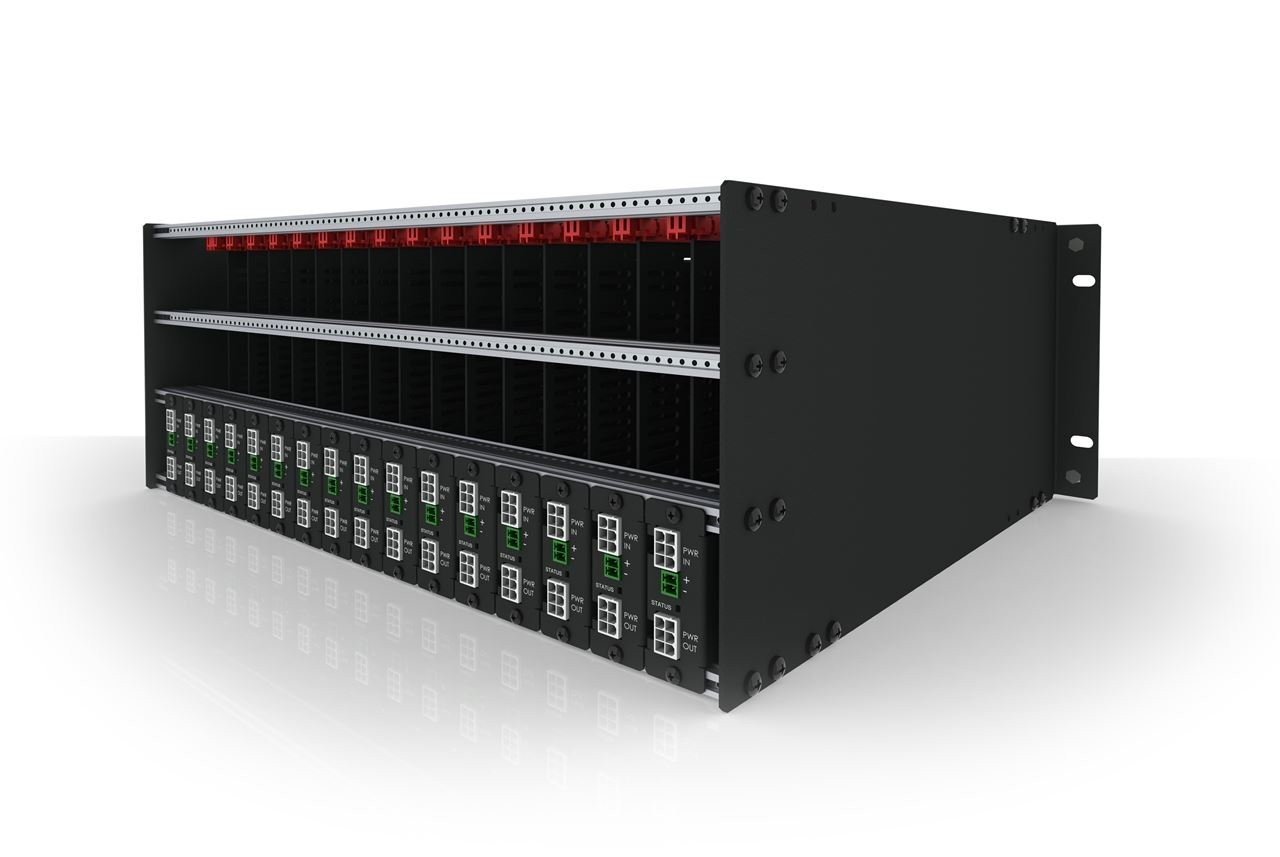

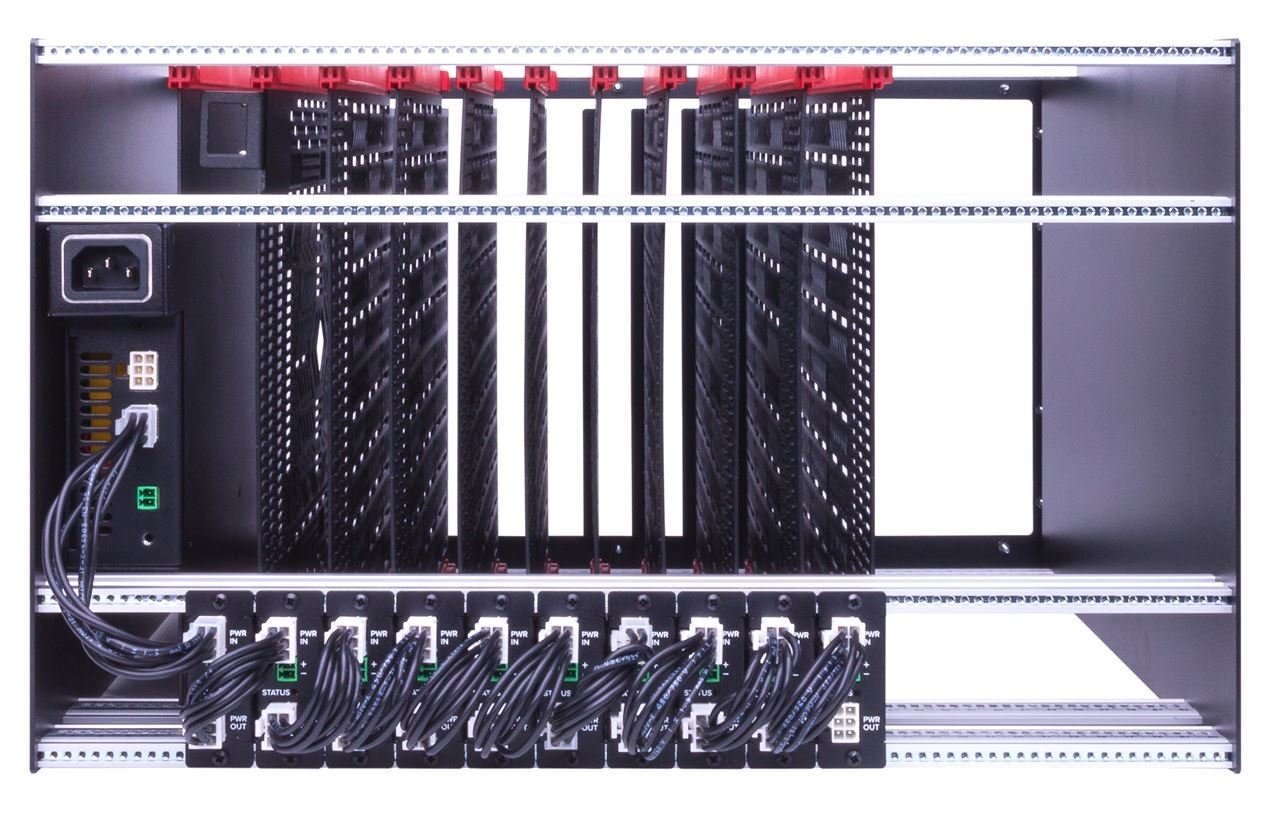

ONErack 5RU Standard Kit

ONErack is a universal, powered mounting system that vastly improves rack installation of small devices.

Category: Racking Solutions
Manufacturer: tvONE
SKU: 1RK-5RU-Kit
Print

Racks full of endless wall warts?

stressed man ONErack

Eliminate your DC power supplies with the ONErack universal mounting system.

Rack it, Power it, Cool it. Do it, with ONErack.

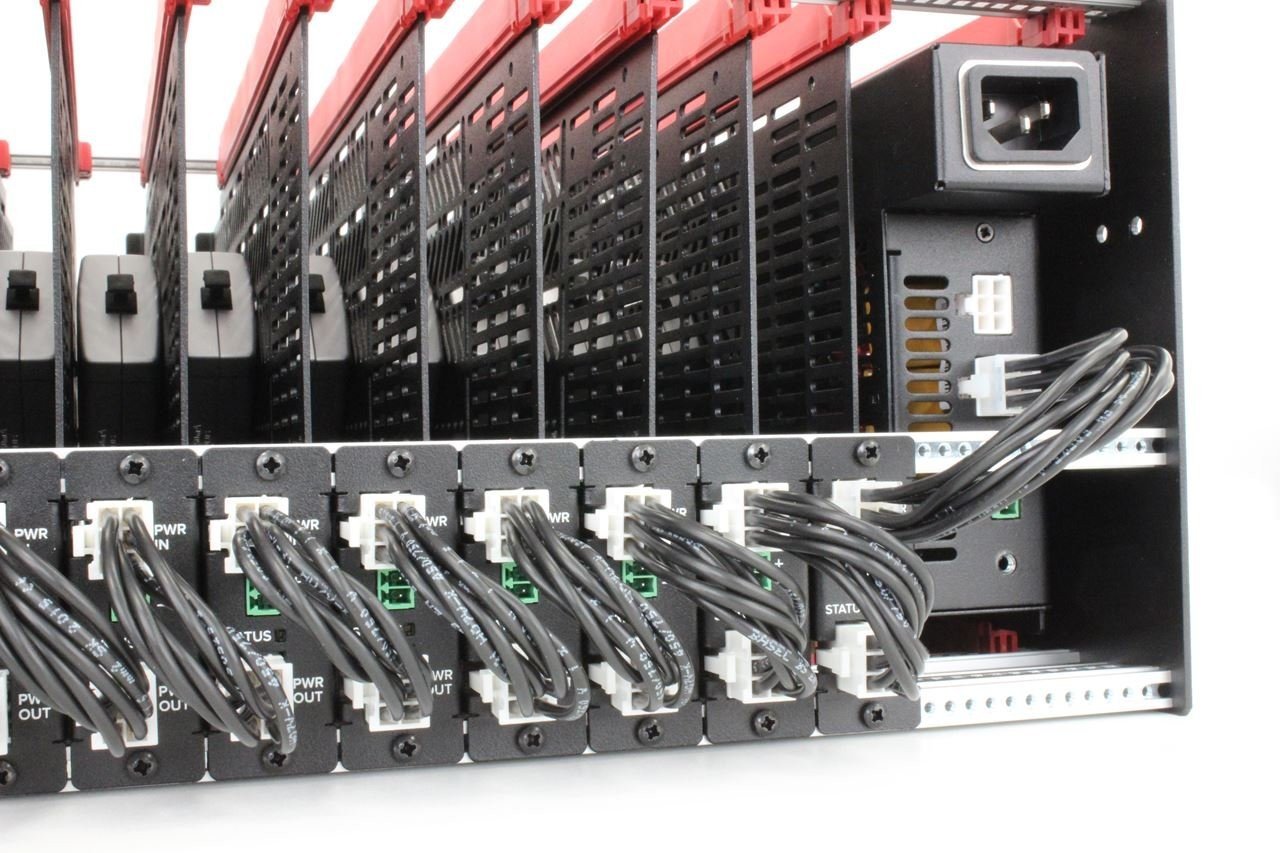

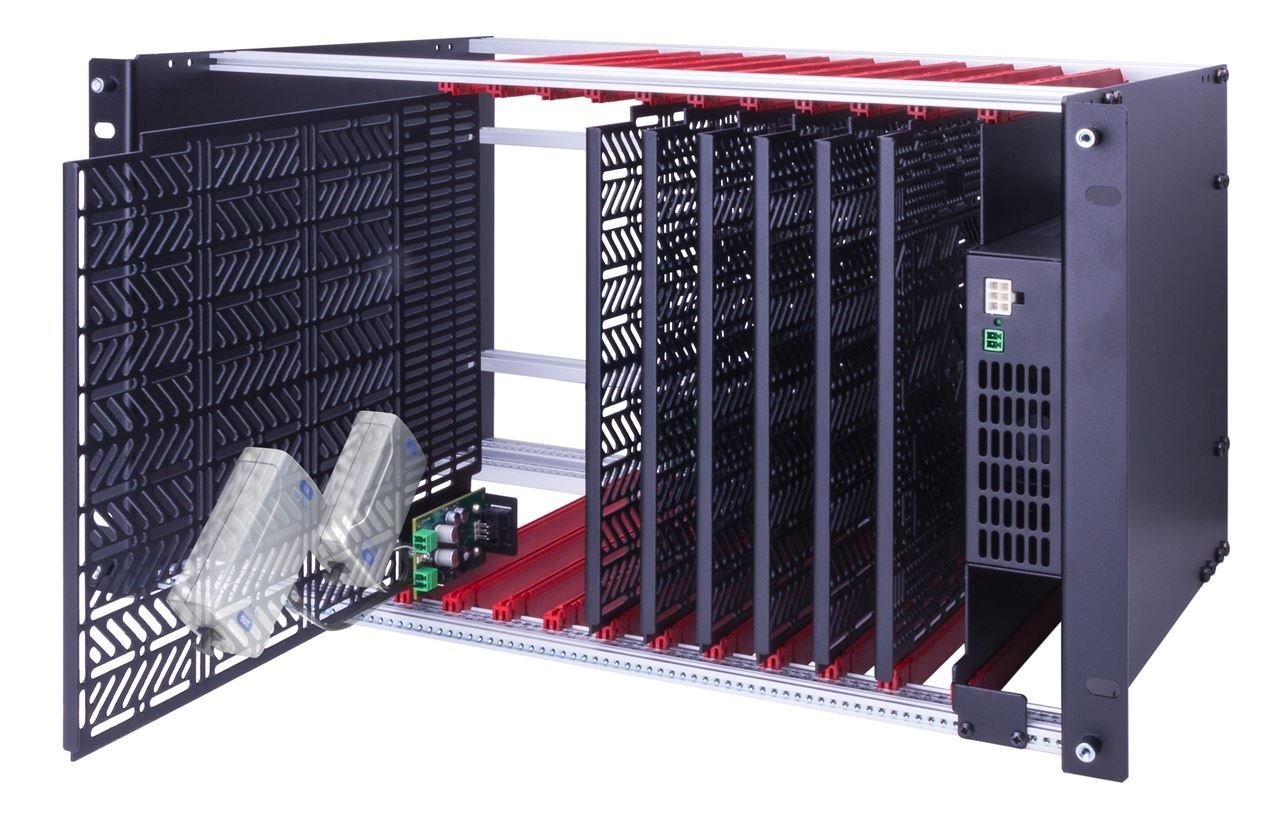

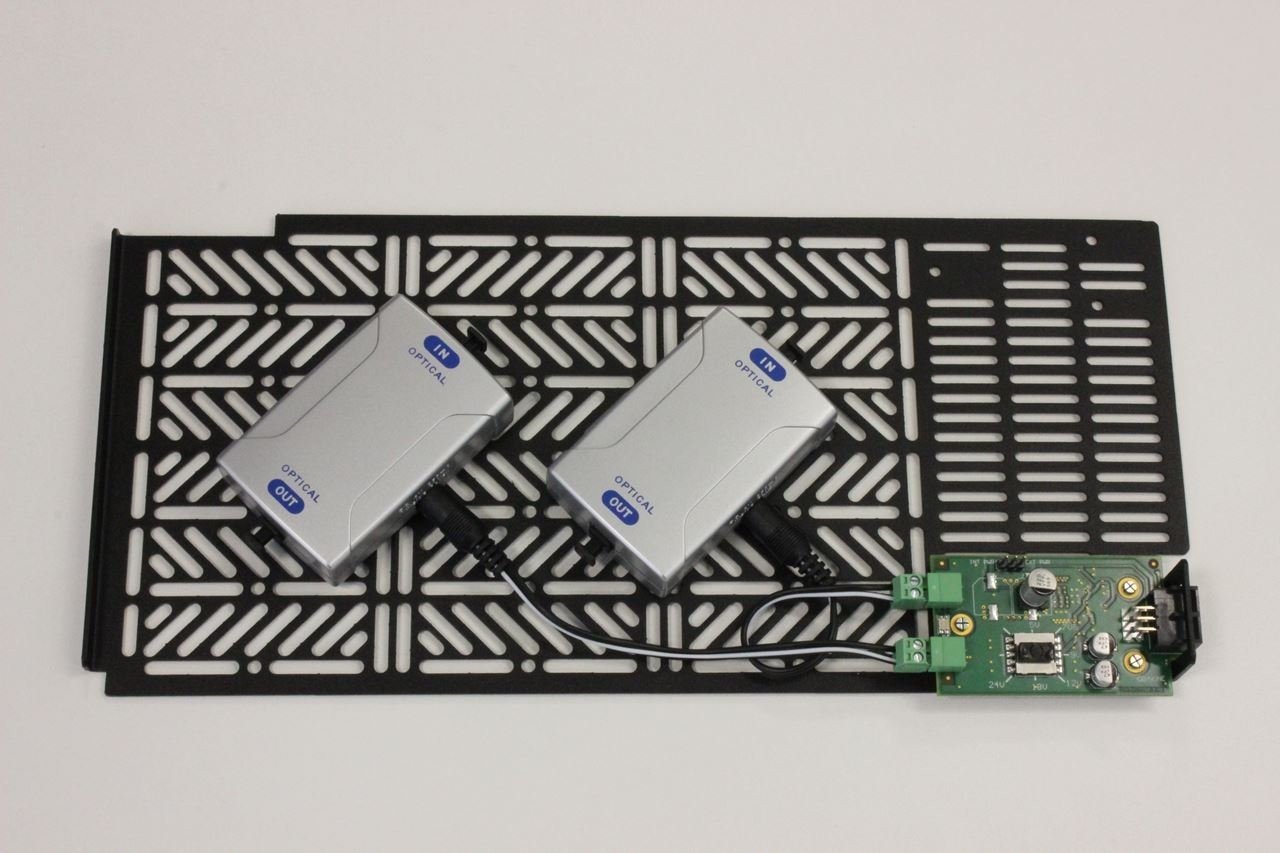

ONErack is a universal, powered mounting system that vastly improves rack installation of small devices. tvONE’s patent pending design converts randomly sized, externally powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. Chassis are available in 4RU, 5RU and 6RU and can hold up to 16 modules with up to 2 voltage selectors each. When using the ONErack Power Supply, each voltage selector, can provide power @ 5v, 7.5v, 9v, 12v, 13.5v, 18v, & 24v up to 35 watts. A pass thru is also available for custom power sources. Each ONErack Chassis can include 1 or more Power Supplies for added power which can also feed additional chassis, providing a clean power solution for all mounted devices. For service, just slide out a failed device, no cable ties, no guessing. Close the front of your ONErack with a Fan cover and keep it all cool. Up to 32 devices in just 4RU, powered and cooled!





 Key Features
Universal mounting for any brand
Variable DC voltages from single power supply

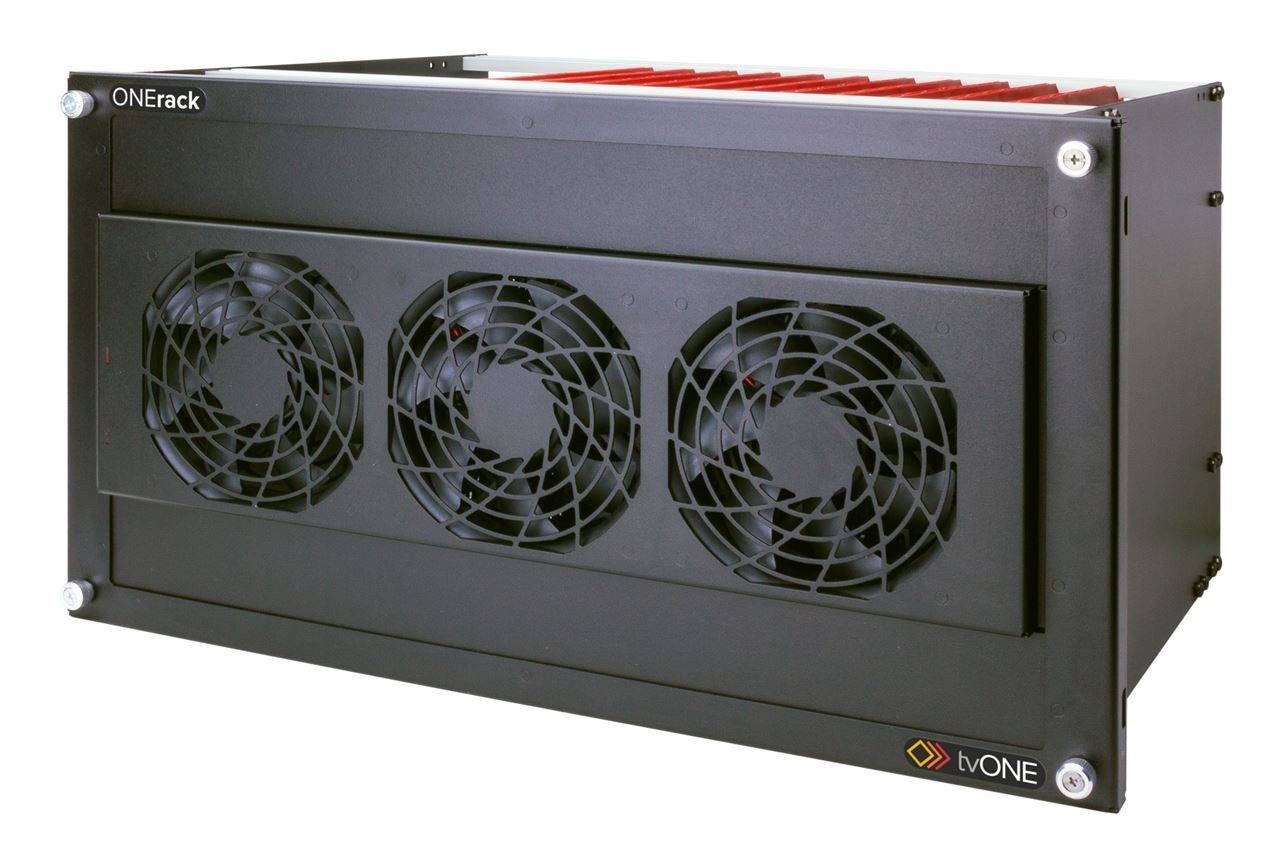

Active fan cooling system for high density applications
Available in 3 sizes; 4RU, 5RU, 6RU
Power up to 32 devices in 4RU, 64 devices in 5 or 6RU1
Each slot can provide 2 different voltages at the same time
Each slot has 7 different voltage settings
Pass thru allows for custom powering options
Fast easy installation of small devices
Simple, time saving serviceability
