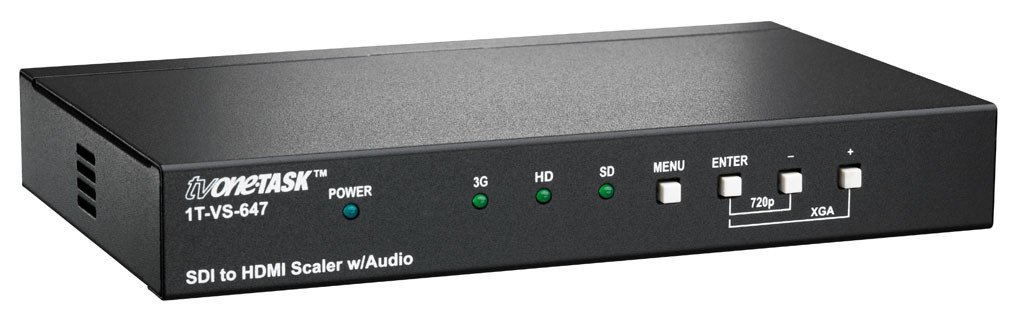

1T-VS-647

Category: Video Scalers, Switchers & Format Converters
Manufacturer: tvONE
SKU: 1T-VS-647

SDI to HDMI Scaler with Audio converts a variety of SDI transmission rates and video resolutions into an HDMI signal.

Inputs
  • SD-SDI
  • S/PDIF
Outputs
  • HDMI
  • Stereo RCA
Status Active

Product Comparison

Warranty 1
Number of Inputs 1
Number of Outputs 2
Resolution Up to 1920 x 1200 / 60 PC, Up to 1080P Video
IP Streaming No
Audio Yes
Format Conversion Yes
Max Power 2.6A

1T-VS-647 SDI to HDMI Scaler with Audio converts a variety of SDI transmission rates and video resolutions into an HDMI signal. It also provides audio flexibility by outputting the audio embedded in the SDI signal to external connectors (both analog and digital formats) for distribution separate from the HDMI data stream. Bit rates to 2.970Gb/s allow processing of resolutions up to and including 1080p. SMPTE standards 425 A&B, 424M, 292M & 259M-C are supported and SMPTE 425M level B to level A Conversion is also standard. Automatic Input Video Format Detection and an On Screen Menu display make operation easy and intuitive. Additional capabilities include SDI loop-thru with equalization and reclocking which means the 1T-VS-647 SDI to HDMI Scaler doubles as an SDI repeater. Finally, as part of the SDI to HDMI scaling process, SDI timing is automatically converted to PC timing parameters.

For more information about HDMI and HDCP please visit www.hdmi.org
