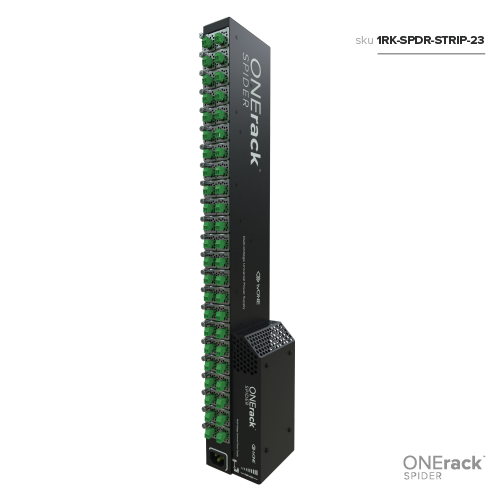

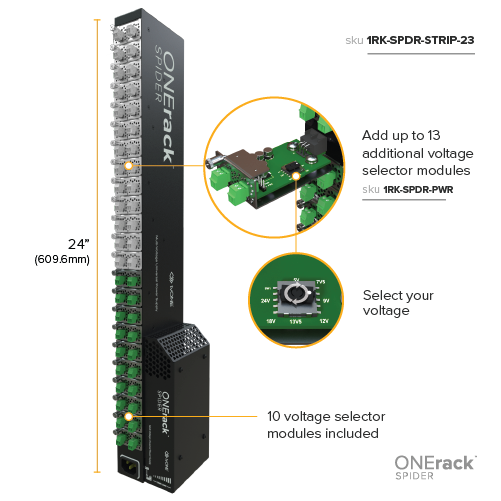

Multi-Voltage PSU Strip with 23 voltage module slots; 14 voltage modules included
ONErack Spider optimizes any installation by eliminating unreliable DC wall warts and other power clutter from the rack design, while also providing reliable power to support a mix of 7 different voltage options; 5v, 7.5v, 9v, 12v, 13.5v, 18v, and 24v.
This innovative, multi-voltage design takes the award-winning power capabilities from the ONErack system to a smaller more flexible level!
The ONErack spider is available in a 1RU half rack version (7 modules capacity) or rear strip version (23 module capacity) and can be installed at the back or side of the rack to provide the ultimate installation flexibility. Choose ONErack Spider for your mission-critical installations in healthcare, higher-education, broadcast and control rooms.
♦ Up to 7 simultaneous DC voltages
♦ UL compliant
♦ 'Zero space’ rear mounting options
♦ Surge suppression
♦ Overload protection
♦ Universal DC power for any brand
Rack Mount Options (PDF)
1RK-SPDR-STRIP-23 Rack Mounting Options - US
1RK-SPDR-STRIP-23 Rack Mounting Options - A4
CAD Drawings (DXF)
1RK-SPDR-STRIP-23 Overall Dimensions
1RK-SPDR-STRIP-23 RM-662 Edge Mount
1RK-SPDR-STRIP-23 RM-662 Side Mount
