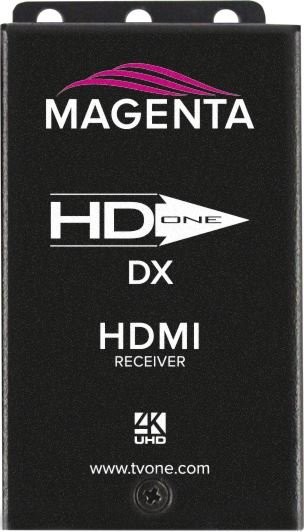

HD-One DX RX

HD-One DX RX

SKU: 2211094-02
Find a distributor

HD-One DX Receiver extends HDMI1.4 to a distance of 328 feet/100 meters.

Download Spec Sheet

Overview

Magenta’s HD-One DX is a top of the line 4K and 1080p extender that greatly reduces the issues that most extenders face. The HD-One DX can send 1920×1200 resolution HDCP-protected video, embedded audio, and IR to a distance of 328 feet (100 meters) or 4k60 up to 200 feet (60 meters), all on a single Cat6 while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference.

In addition to video, the HD-One DX also functions with HDMI embedded audio. Dolby®, TrueHD, and DTS-HD Master Audio are all supported. HD-One is fully HDCP compliant and features plug-and-play functionality. Most importantly for installers, HD-One products just work, period!



Features

 Key Features:

  •          1920×1080, 1080P/60, Resolution, 4K UHD (LX,DX)
  •          Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
  •          Supports Embedded HDMI Audio, Including Dolby® TrueHD and DTS-HD Master Audio
  •          No Adjustments or Tuning Required
  •          328’/100 Meter Reach
  •          200’/60 Meter Reach 4k Resolutions (LX, DX)
  •          500’/152 Meter Reach (LX500, DX500)
  •          HDMI 1.4 Compliant, HDBaseT
  •          HDCP Compliant
  •          Bi-Directional RS-232 Interface (HD-One LX/LX500)
  •          Two-Way IR Support (HD-One LX/LX500)
  •          Includes one IR Emitter/Receiver pair (HD-One LX/LX500)
  •          Tolerances Designed for Commercial Environments
  •          Compatable with CORIOmax HDBaseT input and output modules

 Typical Installation Types

  •          Museums
  •          Large Retail Environments
  •          High-end Security, Education and Residential
  •          Digital Signage
  •          Wayfinding Installations
  •          Home Theatre



 tvONE CORIOmax Compatibility

CORIOmaster

  •          CORIOmaster C3-540
  •          CORIOmaster mini C3-510
  •          CORIOmaster micro C3-503
  •          HDBT output module for CORIOmaster (CM-HDBT-SC-2OUT-1ETH)
  •          HDBT input module for CORIOmaster (CM-HDBT-SC-2IN-1ETH)

CORIOmatrix

  •          CORIOmatrix C3 340
  •          CORIOmatrix mini C3-310
  •          HDBT output module for CORIOmatrix (CM-HDBT-XSC-2OUT-1ETH)

HD-One Series

  •          HD-ONE DX:

                   Kit: 2211079-03

                   TX: 2211093-02

                   RX: 2211094-02

  •          HD-One LX:

                   Kit:2211078-02

                   TX: 2211095-02

                   RX: 2211096-02

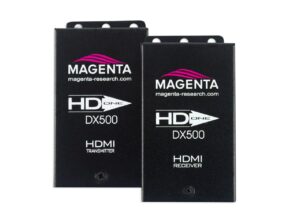

  •          HD-ONE DX500:

                   Kit: 2211114-02

                   Tx: 2211121-01

                   RX: 2211122-01

  •          HD-ONE LX500:

                   Kit: 2211113-02

                   TX: 2211123-01

                   RX: 2211124-01

Downloads, brochures and info documents

Brochures

Extend & Distribute Brochure (US)

Extend & Distribute Brochure (EU)

HD-One DX Brochure (US)

HD-One DX Brochure (EU)

User Guide

HD-One DX/DX 500 User Guide (US)

HD-One DX/DX 500 User Guide (EU)

White Paper

 HDBaseT cabling White paper
