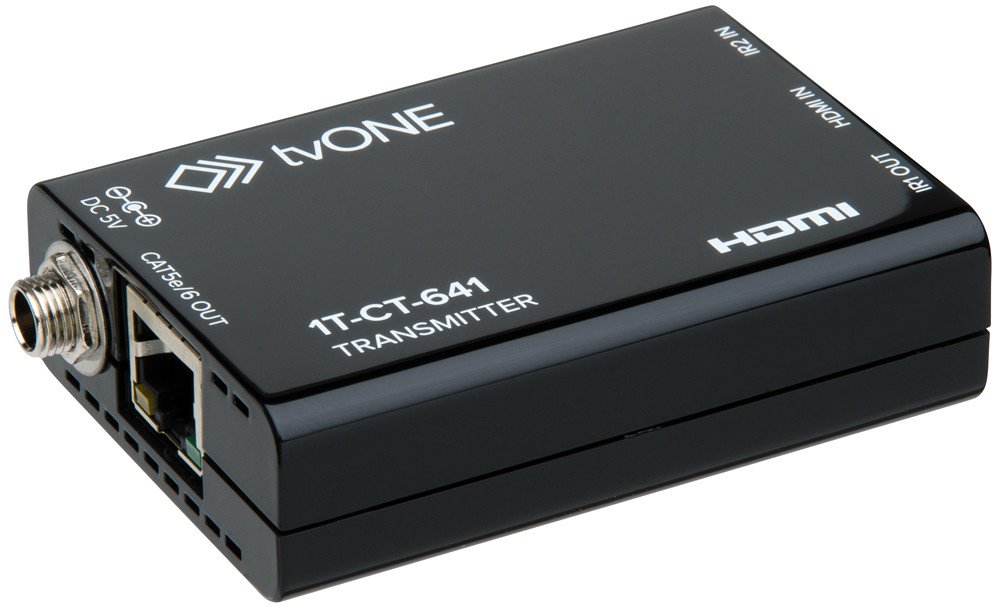

1T-CT-641/1T-CT-642 HDMI over Single Cat.5e/Cat.6 system consists of a 1T-CT-641 Transmitter coupled with a 1T-CT-642 Receiver (each purchased separately) which uses HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-641/1T-CT-642 system can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.
Key Features of the 1T-CT-641/642 System
· HDMI w/3D, 4k(24hz/30Hz),HDCP 1.1 & DVI 1.0 · Uncompressed HDMI signal distribution to 60m/197ft · Class B (HDBaseT-Lite)technology · Supports Embedded HDMI Lossless Digital Audio · Full HD resolution support(1080p@60Hz/36bit) · UHD support (4k@30Hz) · HD 3D formats & PC resolutions up to WUXGA · Supports HDCP Repeater and CEC bypass · Single Cat.5e/Cat.6 Ethernet cable via RJ45 · Bi-directional infrared remote control extensions · Supports DVI when using Optional HDMI to DVI Adaptors
