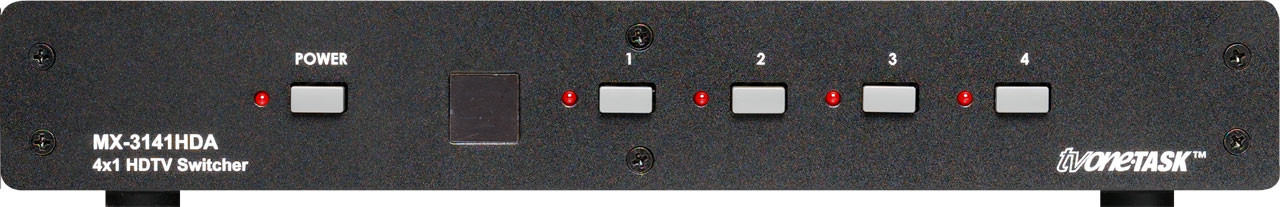

MX-3141HDA
4×1 HDTV Switcher with Stereo – YPbPr Connections
Product information
EOL NOTICE
The MX-3141HDA Routing Switcher has been discontinued. If you require a MX-3141HDA for an upcoming project, please contact your tvONE sales representative.
MX-3141 series 4×1 Routing Switchers are extremely wide bandwidth, high performance products that meet the most demanding requirements for signal routing. Video as well as Audio are routed and the MX-3141HDA switches both Analog and S/PDIF Coaxial Digital Audio. Video Bandwidth is flat +/- 3db to beyond 300MHz insuring these switchers will provide an output identical to the source signals.

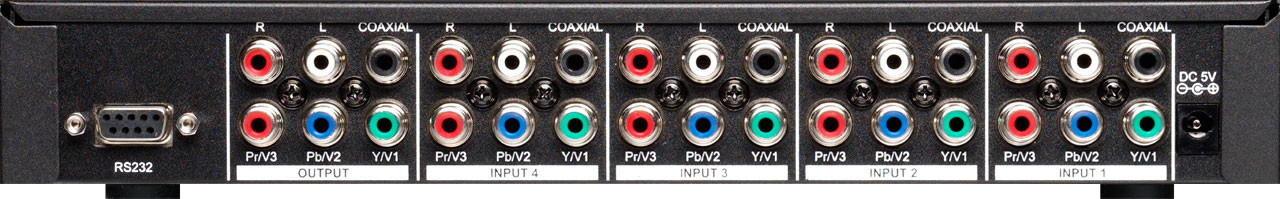

The MX-3141PCA switches both YPbPr Component HDTV & PC Video as well as Stereo Analog Audio. The MX-3141CSVA switches NTSC or PAL Composite or S-Video plus Stereo Analog Audio and the MX-3141HDA switches YPbPr Component HDTV Video and Analog or Coaxial Digital Stereo Audio. All units feature RS-232 control capability and are shipped with an IR remote control, a rack mount kit plus an AC power adapter.
Features
Key Features of the MX-3141 Series
· Professional Grade, High Performance Switcher
· Video Bandwidth: Greater than 300MHz
· PC and HDTV Capability (MX-3141PCA)
· Stereo Analog Audio Plus S/PDIF (MX-3141HDA)
· NTSC and PAL Television Standards
· Inputs: 4x Video, 4x Stereo Audio
· Push Button and IR Inputs Selection
· Rugged Metal Case
· Locking DC Power Connector for Security
Downloads, brochures and info documents
Brochures
CAD Drawings (DXF format)
Manuals
