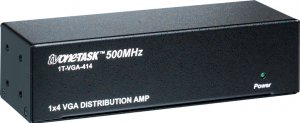

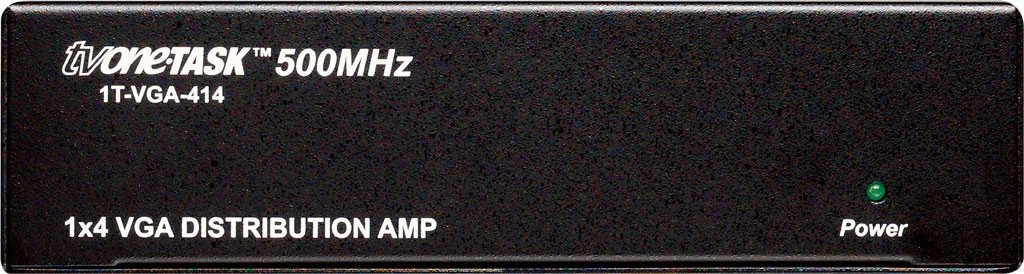

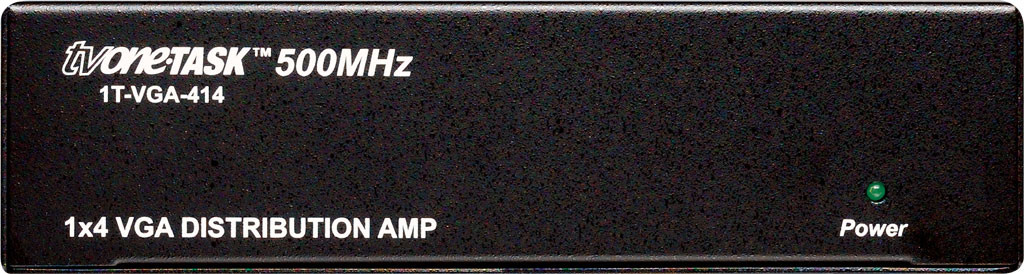

1x4 VGA Distribution Amplifier
EOL NOTICE
This product has been scheduled for End of Life. If you require this product for your project, please contact your sales representative.

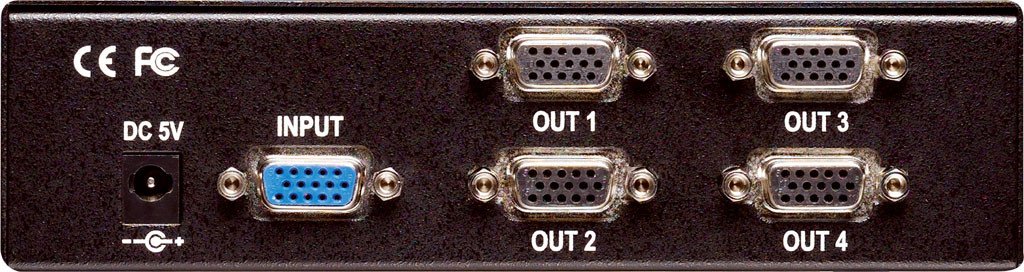

1T-VGA-412 and 1T-VGA-414 RGBHV Distribution Amplifiers provide 2 or 4 outputs respectively for use in any situation requiring multiple outputs from a single PC or other RGB video source. Their video bandwidth in excess of 500MHz handles computer resolutions up to 2560x1600 at distances up to 300 feet from the source without signal deterioration. Both models provide VESA industry standard DDC (Data Display Channel) bidirectional communications for host control of the downstream monitors. Input and Output connectors are high quality HD-15 type. Both products are FCC & CE approved and are RoHS compliant. The power supplies are UL, CE, CSA approved and RoHS compliant.
Both models are housed in small rugged metal cases. They are 5VDC powered and a Power Adapter is included. Optional rackmount kits are available to house either one or two units.
Key Features of the 1T-VGA-412/414
• Drives Monitors up to 300 feet away
• 500+MHz Signal Bandwidth
• Max Resolution 2560x1600
• Locking DC Power Connector for Security
• 2 or 4 Output versions available
• Units can be cascaded for even greater flexibility
