1T-CT-653-USWP

Category: Signal Extension
Manufacturer: tvONE
SKU: 1T-CT-653-USWP

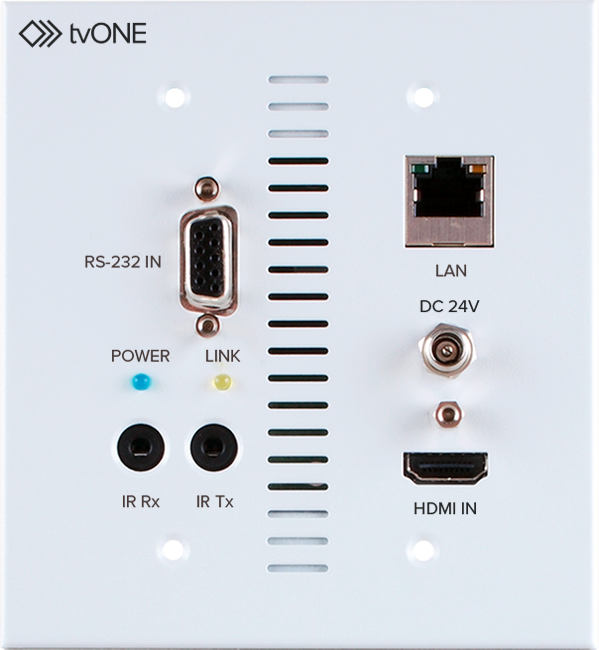

1T-CT-653 Wallplate Transmitter

Inputs
  • HDMI - 4K
  • HDMI
Outputs HDbaseT
Control Options
  • Ethernet
  • RS-232

PRODUCT EOL NOTICE
The 1T-CT-653-USWP has been scheduled for End of Life. An alternative item replacement is the
MG-WP-611-US or MG-WP-611-EU. If you require this for your project, please contact your sales representative.

The product group consists of a 1T-CT-653-USWP Transmitter coupled with a 1T-CT-654-USWP Receiver which employs HDMI v1.4 capability and HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable (this is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4K x 2K formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard. The 1T-CT-653-USWP/1T-CT-654-USWP system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation. Control signals can be transmitted (Ethernet, Infrared or RS- 232) and PoH (Power Over HDBaseT) technology is employed to allow powering of the Receiver from the Transmitter, negating the need for a separate power supply for that unit.


WARNING: Risk of fire or electric shock. This product must be installed by a professional electrician in accordance with the applicable federal, state and local laws, regulations and electrical codes.

  • HDMI with 3D, 4k(24Hz/30Hz) support
  • Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0 specifications
  • Uncompressed signal distribution to 100 meters (325 feet)
  • Uses HDBaseT performance enhancing technology
  • Full HD resolution support (1080p@60Hz/36bit), UHD support (4k@30Hz)
  • HD 3D formats & PC resolutions up to WUXGA
  • Supports Embedded HDMI Lossless Digital Audio
  • Supports CEC bypass
  • Uses a single Cat.5e/Cat.6/Cat.6a/Cat.7 Ethernet cable via RJ45 connectors
  • Bi-directional Infrared remote control extension support
  • Bi-directional RS-232 remote control
  • Bi-directional Ethernet support
  • Receiver supports both PoH (Power over HDBaseT) and local power.
  • Designed for installation into 3.7” x 2.8” wall cut outs or standard 2 gang low
    voltage electrical boxes

 Manuals

1T-CT-65X-USWP Manual

 White Paper

 HDBaseT cabling White paper
