 1T-PAL-NTSC and 1T-PAL-NTSC-GL Standards Converters




1T-PAL-NTSC 1T-PAL-NTSC is an ultra compact, high performance Standard Converters converts any of the widely used world television standard signals to any other widely used television standard. In addition to converting between the worlds television standards, it also corrects instabilities present in video signals. Time base errors found in videotape playbacks are eliminated and signal amplitude variations are corrected by circuitry that automatically adjusts errant input levels to insure a 1 volt P/P output. Noisy or distorted sync pulses are replaced with reinserted, stable sync. Digital Comb filtering is applied to Y/C signals. Built in AGC maintains 1 V P/P signal outputs.

1T-PAL-NTSC-GL provides all the features of the 1T-PAL-NTSC plus frame synchronization of incoming signals. It also provides a Genlock feature that enables the incoming signal to be locked to an external video source.


SPECIFICATIONS

Video Inputs/Outputs
Composite Video 1x via BNC Connector
S-Video (Y/C) 1x via 4-PIN Mini-DIN Connector
Genlock (1T-PAL-NTSC-GL) C-Video Looping via BNC
Genlock Loop-thru With 75Ω Termination Switch
Video Specifications
Standards Supported (Both Input and Output) NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM
System Memory 6Mb
Sampling Frequency Y: 13.50 Mhz, R-Y: 6.75 Mhz, B-Y: 6.75 Mhz
Digital Code Bitrate Y: 8 Bits, R-Y: 8 Bits B-Y: 8 Bits
Line Conversion 525/625 lines (Either Direction)
Field Conversion 60/50 Fields (Either Direction)
Video Level Adjustment Luma, Chroma, Setup, Hue, Sharp
Frequency Response 400 TV Lines
S/N Ratio 50 db
Mechanical
Size (H-W-D) 1.25x5.3x3.6 (34x145x95mm)
Weight (Net) 2.2 lbs (1kg)
Warranty
Limited Warranty 2 Years Parts and Labor
Environmental
Operating Temperature +32° to +120° F (0° to +48° C)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -40° to +150° F (-40° to +65° C)
Storage Humidity 10% to 85%, Non-condensing
Power Requirement
External AC Adapter 12 VDC@1A
Regulatory Approvals
Standards Converter FCC, CE
Power Supply UL, CE, CSA
Accessories Included
See Downloadable Specsheet Specsheet PDF
Product Item Numbers
1T-PAL-NTSC Standards Converter
1T-PAL-NTSC-GL Standards Converter w/Genlock

Key Features of the 1T-PAL-NTSC Series


  • Multi-standard for World TV Systems
  • Full Frame TBC for all Inputs
  • Comb Filter Decoding of the Video Input
  • Integral Video Processor for Adjustments
  • Genlocks to System Reference (1T-PAL-NTSC-GL)

Click the image for a larger view ...

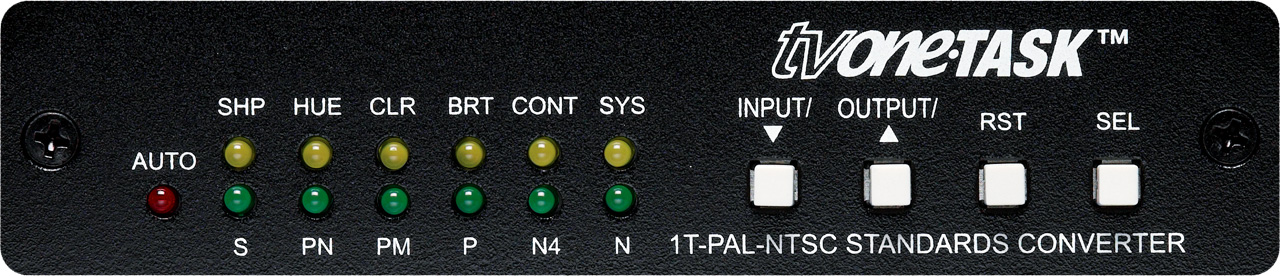

1T-PAL-NTSC Front View 1T-PAL-NTSC Rear View
1t-pal-ntsc front view 1t-pal-ntsc rear view

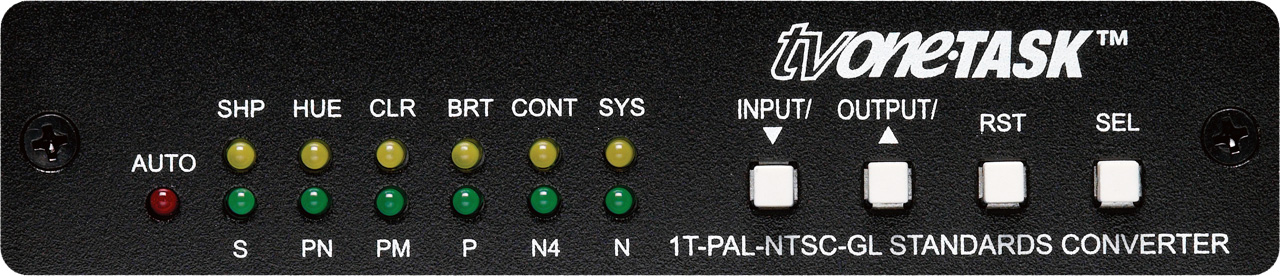

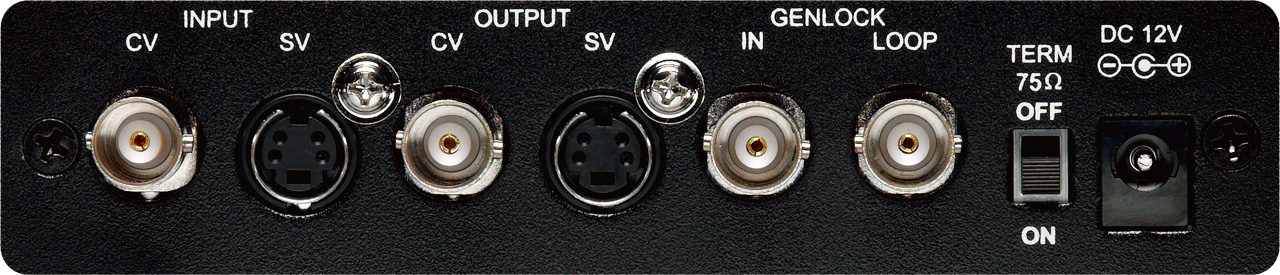

1T-PAL-NTSC-GL Front View 1T-PAL-NTSC-GL Rear View
1t-pal-ntsc-GL front view 1t-pal-ntsc-GL rear view
