 Audio Routing Switchers




TV One-Task™ Series Audio Routing Switcher is an ultra compact, high performance product designed to meet the most demanding requirements for signal routing. The 1T-SW4x1ARL is a 4x1 Stereo Audio Routing Switcher with RCA connectors. Audio Bandwidth of 20Hz to 20KHz insures that the stereo audio output is identical to the source signals. Input selection is via front panel push buttons or IR Remote Control. It is 12VDC powered and a small In-Plug Power Adapter is included. For best performance, use high-grade output cables.


SPECIFICATIONS

Audio Routing Switchers
1T-SW4x1ARL Connectors 4x1 Stereo Audio (R-L)
Audio Performance
Bandwidth 20Hz to 20KHz, +/- 0.1db
Impedance 20 KOhm
Distortion <0.5db
Isolation >75db
Signal to Noise Ratio >75db
THD <0.4% (2nd Harmonic)
Signal Gain Unity
Mechanical
Size (H-W-D) 1"x7"x4" (25x175x100mm)
Weight (Net) 1.5 lbs (680g)
Warranty
Limited Warranty 2 Years Parts and Labor
Environmental
Operating Temperature +32° to +120° F (0° to +48° C)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -40° to +150° F (-40° to +65° C)
Storage Humidity 10% to 85%, Non-condensing
Power Requirement
External Power Supply 12VDC @ 500mA Maximum
Regulatory Approvals
Amplifier Units FCC, CE
Power Supplies UL, CE, CSA
Accessories Included
See Specsheet Download Specsheet

Key Features of the Video Routing Switchers


  • Ultra Compact, High Performance Unit
  • 20Hz to 20KHz Bandwidth
  • 4 Inputs, R-L Stereo
  • Rugged Metal Case
  • Locking DC Power Connector for Security

Click the image for a larger view ...

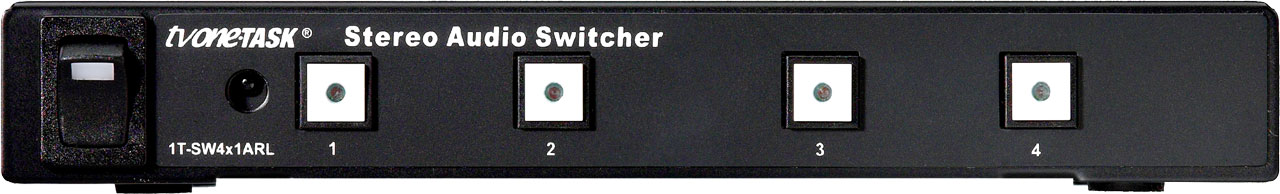

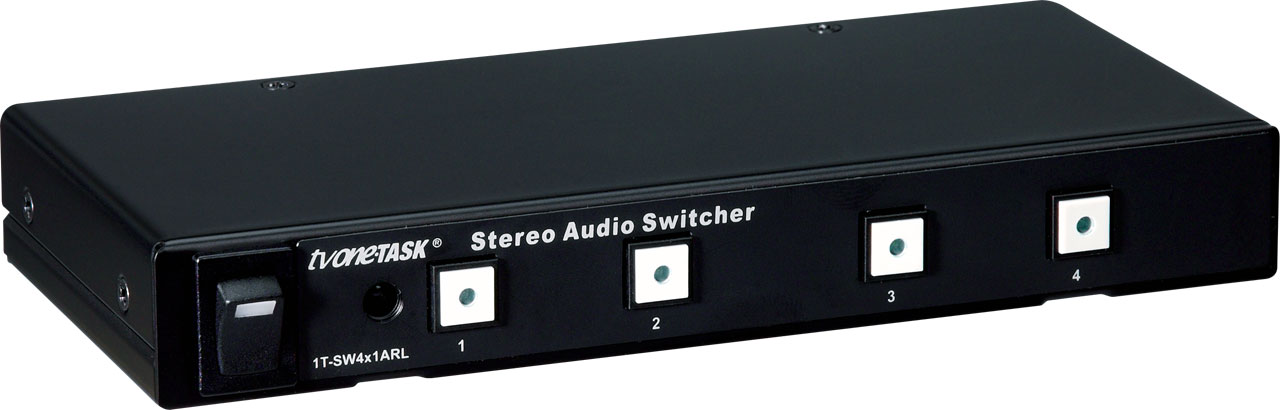

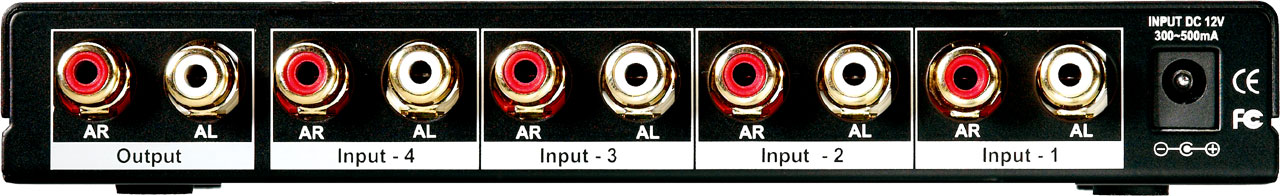

1T-SW4x1ARL Front View 1T-SW4x1ARL Iso View 1T-SW4x1ARL Rear View
